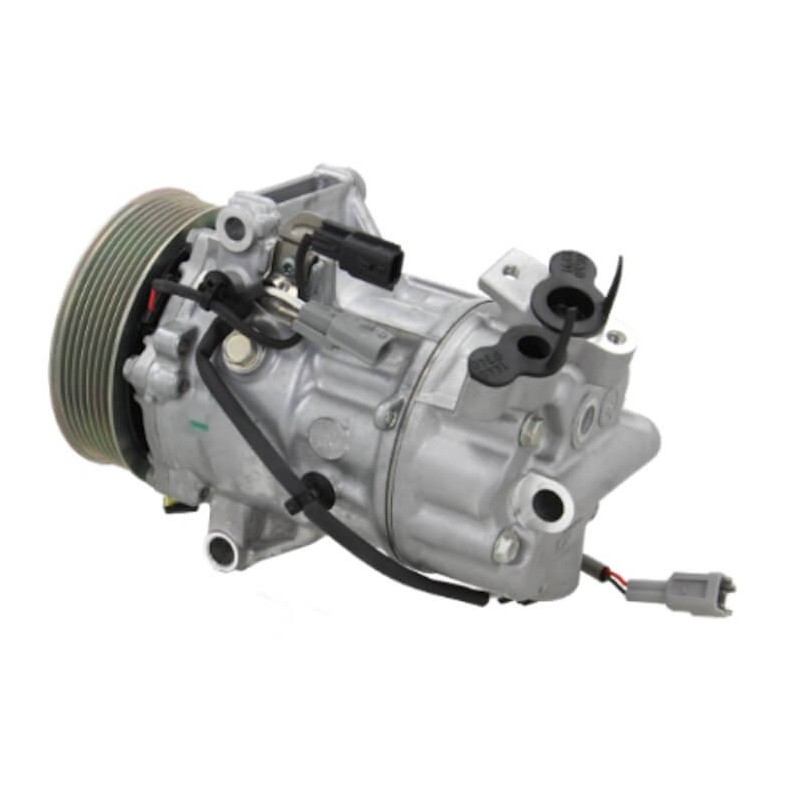

AC compressor replacing VALEO C813382VIAM / 813382

w090575036000

New product

1 Item

Replacing:
926000217RRenault
926000734RRenault
926004183RRenault
926007741RRenault
926007953RRenault

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

269,90 € Inc VAT

More info

Brand +Line

Pulley information
Pulley Grooves7

Unit information
Voltage12
Family typeVCS-14EC

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil typePAG 46YF
RefrigerantR134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
RemarksIMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.



NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR

Replacing:

90575036PSH
21000488LKQ
320015NRF
320015NRFNRF
4301K703Van Wezel
510893Elstock
511130Elstock
700510893DRI
70817181Mahle
813382Valeo
813882Valeo
890653Nissens
8FK351007291Mahle Behr
8FK351115061Mahle Behr
926000217RRenault
926000734RRenault
926004183RRenault
926007741RRenault
926007953RRenault
93052096Frigair
AC00896TMI
AC01132TMI
AC153539Short code
AC154656Short code
AC170284Short code
ACP605000PMahle
C813382VValeo
C813382VIAMValeo
CAC71024Casco
CAC71024ASCasco
CAC71024GSCasco
CS20550Delphi
EKL31424Euro Klima
OCP40007AES
RTAK640AVA Quality Cooling
RTK640AVA Quality Cooling

Download

COMPRESSOR WARRANTY FORM

To be added: Garage documents concerning rinsing and replacement of condenser, filter and dryer. Without these documents, the manufacturer will SYSTEMATICALLY refuse the warranty claim. In the event of rejection, a basic examination fee of €85 will be charged.

Download (584.7k)
