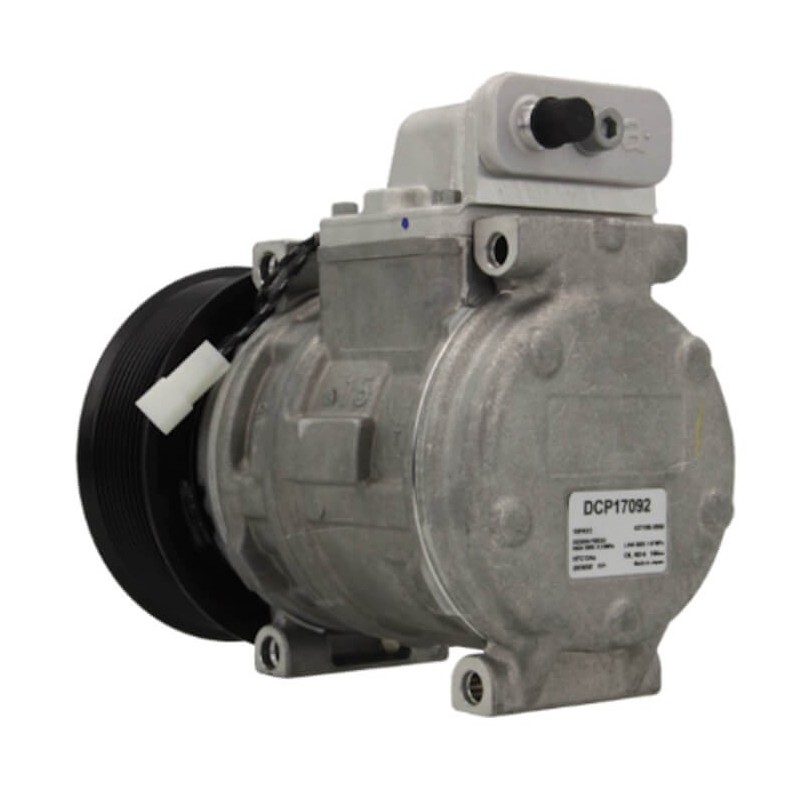

AC compressor DENSO DCP17092 replacing 4471708790

w090555007260

New product

1 Item

Replacing:
4371005950Denso
4471708790Denso
4471905510Denso

Garage documents regarding flushing and replacement of condenser, filter and dryer.

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.

639,90 € Inc VAT

More info

Brand DENSO

Pulley information
Pulley Grooves11
Pulley OD mm136.00

Unit information
Voltage24
Family type10PA15C

Remarks

IMPORTANT! Oil Filling.
1. Drain the oil from the compressor and measure the amount of oil.
2. Fill with the additional oil quantity and oil type ad required from the vehicle manufacturer. Please be careful not to combine the different kind of oil types.

Misc. information
Oil typePAG 46
RefrigerantR134a

It is important to replace the filter drier, condenser and expansion valve and flush the circuit when fitting the new air conditioning compressor.

Compressor replacement must be done by following the information issued by the vehicle manufacturer and performed by a professional.

Catalogue information
RemarksIMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.



Garage documents regarding flushing and replacement of condenser, filter and dryer,

Without these documents, the manufacturer SYSTEMATICALLY refuses the warranty request.



NO WARRANTY CAN BE CLAIMED IF THE FILTER/DRYER

IS NOT CHANGED WHEN INSTALLING THE NEW COMPRESSOR

Replacing:

90555007PSH
1201675CTR
2473002370Denso
2473004670Denso
32829NRFNRF
4371005950Denso
4471708790Denso
4471905510Denso
44914Febi Bilstein
5412300511Mercedes-Benz
5412301111Mercedes-Benz
92030303Frigair
A5412300511Mercedes-Benz
A5412301111Mercedes-Benz
AC153831Short code
AC154273Short code
AC170824Short code
CAC63006Casco
CAC63006ASCasco
CAC63006GSCasco
DCP17092Denso
DCP17502Denso

Download

COMPRESSOR WARRANTY FORM

To be added: Garage documents concerning rinsing and replacement of condenser, filter and dryer. Without these documents, the manufacturer will SYSTEMATICALLY refuse the warranty claim. In the event of rejection, a basic examination fee of €85 will be charged.

Download (584.7k)
