Starter 0001123036 replacing 0001123037 / 02E911023L / 02E911023LX
€159.90

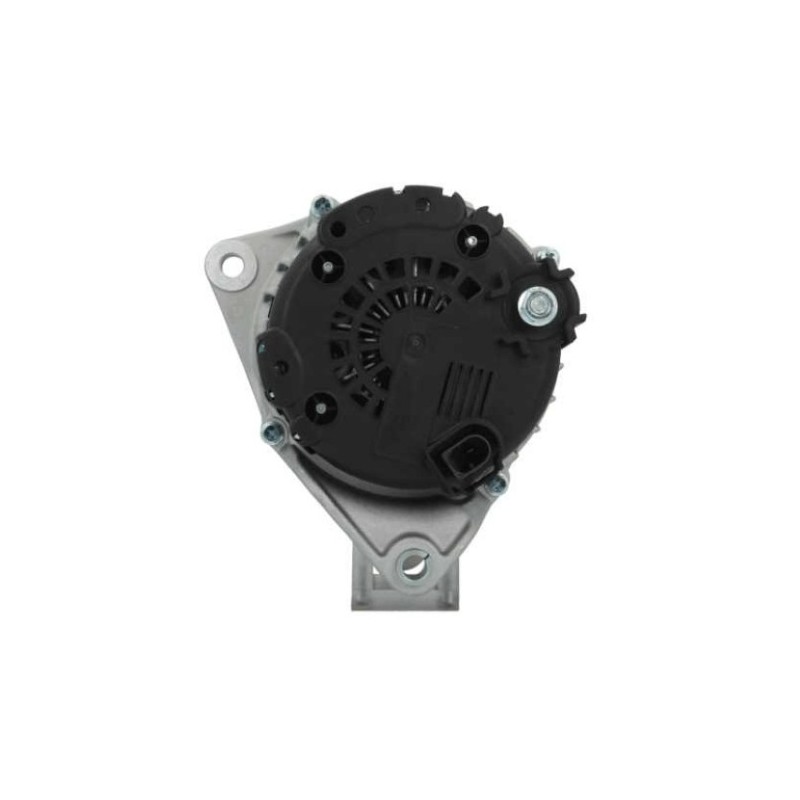

Alternator replacing FGN18S135 / FG18S135 / 2619328B / 5801580943
w116523
| 2619328 | Valeo |
| 2619328A | Valeo |
| 2619328B | Valeo |
| 287704 | Elstock |
| 40135 | CEVAM |
| 439884 | Valeo |
| 440627 | Valeo |
| 5801580943 | Iveco |
| 619328 | Valeo |
| 931886 | EDR |
| DRA1886 | Remy |
| FG18S135 | Valeo |
| FGN18S135 | Valeo |
| LRA04095 | Lucas |
Features
Physical information | ||
|---|---|---|
| A | Pulley dist. | 37.10 |
| B | Width/holder arm | 13.90 |
| C | Mount. bracket dist. | 83.00 |
| D | Bracket hole | 10.45 |
| E | Belt. adj. brackethole pos. | 11 |
| G | Belt. adj. bracket hole | 11.00 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 96.50 |
| J | Radius 2 | 95.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 12 |
| N | Rotation | CW |

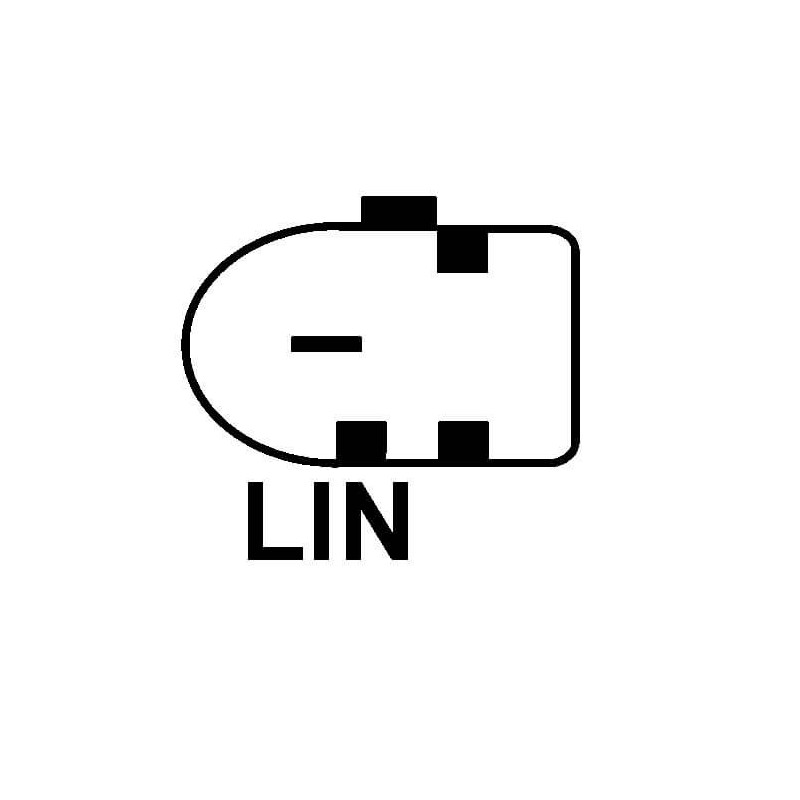

| O | Plug no. 1 | PL174 |
| R | Total length mm | 187.00 |
| Terminal type | COM | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 180 | |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Fan | IF | |
| Regulator type | IR | |
| Vac. pump | No | |
| Remarks | This Alternator has a COM terminal on the regulator, It is recommended that the OEM number is used to check suitability before ordering | |
for
| Brand | Model | Typ | year |
| IVECO | Daily 35C14 3.0 JTD | [F1CFA401] | 01/01/14 |
| IVECO | Daily 35C15 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 35C17 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 35C21 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 35S15 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 35S17 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 35S21 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 40C HD 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 40C15 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 40C17 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 40C21 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 45C17 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 50C 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 50C HD 3.0 CNG | [F1CFL411] | 01/01/14 |
| IVECO | Daily 50C HD 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 50C15 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 50C17 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 50C21 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 55C17 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 60C HD 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 60C17 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 65C HD 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 65C15 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 65C17 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 65C21 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 70C15 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 70C17 3.0 JTD | [F1CFL411] | 01/01/14 |
| IVECO | Daily 70C21 3.0 JTD | [F1CFL411] | 01/01/14 |
