Relais pour démarreur Delco remy 1114523 / 1114524 / 1114525 / 1114526

= référence delco remy 8133925 / 1114531 / 1114557 / 1114562

1114564 / 1114566 / 1114569 / 1114571

= Ford  E3PZ11390A / E4FZ11390A

= 66-100-ca

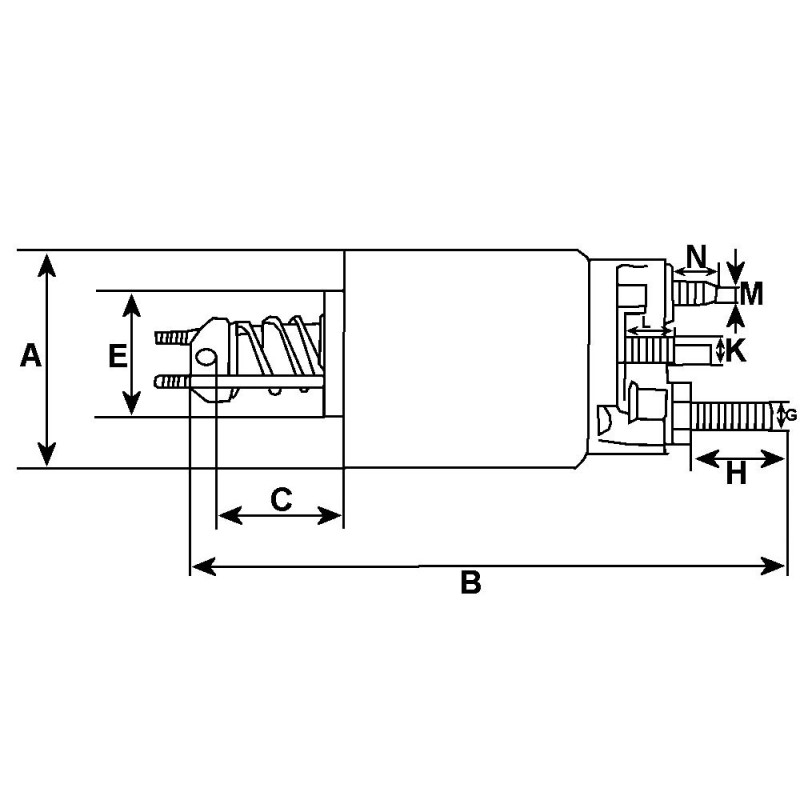

Caractéristiques :

Voltage 12

A = DE mm 59.90

B = Longueur totale mm 105.25

M = Boulon de la bobine 3/8" UNC

D = DE/capot mm 65.55

E = DI capot mm 28.50

Remarques Retour isolé

G = B+ 3/8" UNC

H = Hauteur/B+ 14.50

I = Kl. 15a/mm 10-32 UNF

K = Kl. 50/mm 10-32 UNF

J = Largeur/kl. 15a 10.00

Pour 5MT, 22MT

L = Largeur/kl. 50 10.00

No. bornes 4

marque générique

pour démarreur :

Allis-Chalmers 4885883R, 8620794, 8625404

American Motors 8953-000-760, 8953-002-0124

Bobcat 6599152, 6633058, 6658835, 6658841, 6671014; Case A169502

Caterpillar 3T8191, 695324, 6F6848, 7N2137, 7N8402; Chrysler 8134193, 8982775000, 8982775013, 8982775013, JR775000, JR775013; Clark 2385010, 316595, 999665

Cummins 3604481RX, 3604482RX, 3901365, 3901386, 3904445, 3905480, 3909913

Delco 10455001, 10455004, 10455006, 10455007, 10455015, 10455016, 10455017, 10455018, 10455019, 10455020, 10455021, 10455022, 10455023, 10455024, 10455044, 10455049, 10455052, 10455055, 10455300, 10455301, 10455305, 10455306, 10455307, 10455308, 10455312, 10455314, 10455315, 10455316, 10455317, 10455318, 10455319, 10455320, 10455321, 10455323, 10455324, 10455325, 10455326, 10455327, 10455328, 10455329, 10455330, 10455331, 10455332, 10455333, 10455334, 10455336, 10455337, 10455338, 10455339, 10455340, 10455341, 10455343, 10455347, 10455348, 10455349, 10455350, 10455351, 10455352, 10455353, 10455354, 10455355, 10455356, 10455357, 10455500, 10455602, 10455604, 10456017, 10461070, 10465008, 10465018, 10465020, 10465023, 10465025, 10465027, 10465028, 10465029, 10465031, 10465032, 10465033, 10465034, 10465035, 10465036, 10465037, 10465059, 10465102, 10465149, 10465394, 10465409, 10465416, 10465423, 10465430, 10495396, 10495397, 10495398, 10496871, 10496872, 10496873, 10496875, 10496876, 10496878, 10496880, 10496882, 10496883, 10496885, 10496888, 10496889, 10496890, 10497396, 1107245, 1107286, 1107712, 1108385, 1108447, 1108448, 1108481, 1108752, 1108754, 1109033, 1109035, 1109053, 1109076, 1109077, 1109086, 1109097, 1109214, 1109218, 1109219, 1109262, 1109265, 1109361, 1109446, 1109447, 1109495, 1109527, 1109531, 1109532, 1109533, 1109534, 1109535, 1109537, 1109538, 1109544, 1109551, 1109556, 1109560, 1109561, 1109562, 1109563, 1109564, 1113589, 1113593, 1113597, 1113598, 1113599, 12301483, 12303394, 12304738, 15555619, 1876553, 19133917, 19133953, 19136124, 19136132, 19136141, 19136142, 19136149, 19136150, 19136158, 19136189, 19136196, 19136198, 19136199, 19136200, 19136202, 19136202, 19136203, 19136205, 19136208, 19136211, 1977079, 1977083, 1977085, 1977091, 1984536, 1987287, 1987287, 1987288, 1987289, 1987332, 1987495, 1988430, 1988603, 1988709, 1988710, 1988711, 1988714, 1988716, 1988717, 1988718, 1988719, 1988720, 1988721, 1988721, 1988722, 1988723, 1988724, 1988725, 1989453, 1989454, 1998204, 1998205, 1998224, 1998226, 1998229, 1998230, 1998233, 1998234, 1998235, 1998236, 1998237, 1998238, 1998239, 1998240, 1998241, 1998242, 1998243, 1998244, 1998245, 1998246, 1998247, 1998248, 1998249, 1998251, 1998252, 1998253, 1998258, 1998259, 1998260, 1998261, 1998262, 1998263, 1998264, 1998265, 1998266, 1998267, 1998269, 1998270, 1998271, 1998272, 1998273, 1998274, 1998276, 1998279, 1998280, 1998281, 1998282, 1998283, 1998284, 1998285, 1998286, 1998287, 1998288, 1998289, 1998290, 1998292, 1998293, 1998294, 1998295, 1998297, 1998298, 1998299, 1998300, 1998301, 1998302, 1998303, 1998304, 1998305, 1998306, 1998307, 1998308, 1998309, 1998310, 1998311, 1998313, 1998316, 1998317, 1998323, 1998324, 1998325, 1998326, 1998327, 1998328, 1998329, 1998330, 1998331, 1998332, 1998333, 1998334, 1998335, 1998336, 1998337, 1998338, 1998339, 1998340, 1998341, 1998342, 1998343, 1998344, 1998345, 1998346, 1998347, 1998348, 1998349, 1998350, 1998352, 1998353, 1998354, 1998355, 1998356, 1998357, 1998358, 1998359, 1998360, 1998361, 1998362, 1998363, 1998364, 1998365, 1998366, 1998367, 1998368, 1998370, 1998373, 1998374, 1998375, 1998376, 1998377, 1998378, 1998379, 1998380, 1998381, 1998382, 1998383, 1998384, 1998385, 1998386, 1998387, 1998388, 1998389, 1998390, 1998391, 1998392, 1998393, 1998394, 1998395, 1998396, 1998397, 1998398, 1998399, 1998400, 1998402, 1998403, 1998408, 1998410, 1998411, 1998412, 1998413, 1998414, 1998415, 1998416, 1998418, 1998419, 1998422, 1998423, 1998424, 1998427, 1998428, 1998429, 1998430, 1998431, 1998433, 1998434, 1998435, 1998436, 1998437, 1998438,

montage sur :

Agco Gleaner (1987-1988) , Allis Chalmers (1974-1986) , American Motors (1982-1983) , Bobcat (1981-1998) , Buick (1979-1995) , Cadillac (1979-1992) , Carrier Transicold (1976-1998) , Case (1973-1994) , Caterpillar Ag. & Ind. (1979-1986) , Champion (1977-1988) , Chevrolet (1970-1995) , Chevrolet - Europe (1999-2005) , Clark (1963-1995) , Cummins Engines (1980-1988) , Cummins Marine Engines (1985-1989) , Deutz-Allis (1987-1988) , Deutz-Fahr (1987-1994) , DMT Corporation (1984-1986) , Dresser (1984-1992) , Flaherty (1982-1988) , Ford (1983-1984) , Freightliner (1992-2001) , GMC (1970-1995) , Hyster (1968-2006) , International (1978-1984) , Isuzu (1989-1992) , Jeep (1982-1986) , John Deere (1971-2005) , Kenworth (1994-2007) , Lister-Petter (1986-1988) , Mack (1986-1991) , Massey Ferguson (1986-1994) , Mercruiser (1978-1998) , New Holland Industrial (1981-1988) , Oldsmobile (1979-1995) , OMC (1982-1985) , Perkins (1983-1988) , Pontiac (1980-1995) , Renault Heavy Duty - Europe (1979-1993) , Saviem (1973-1980) , Teledyne - Continental (1965-1986) , Teledyne - Wisconsin (1960-1985) , Timberjack (1996-2007) , Versatile (1978-1985) , Waukesha (1979-1990) , White Industrial (1988-1992) , Yale (1985-2002)
