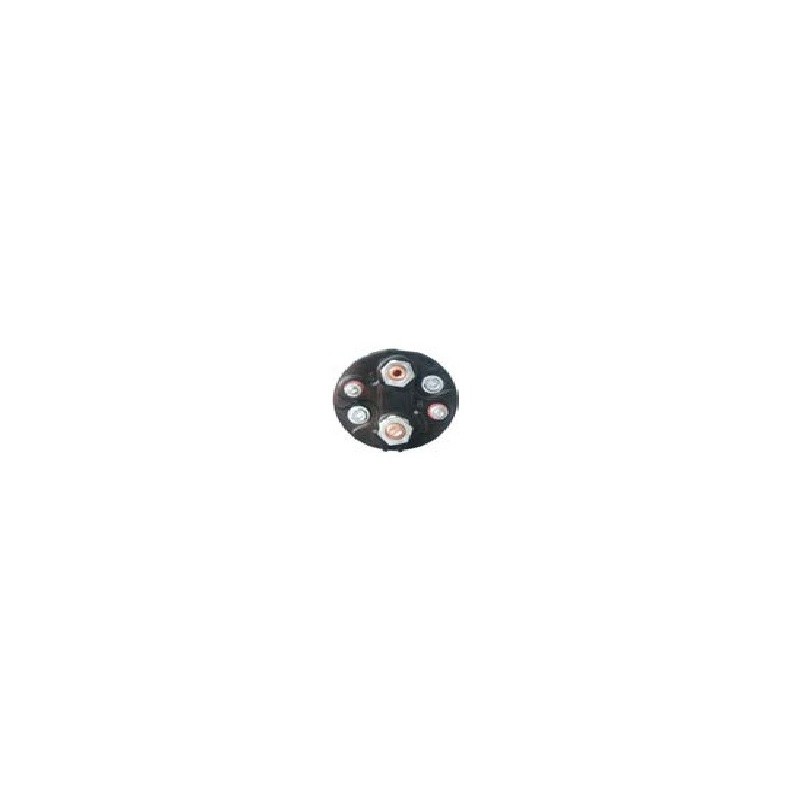

Magnetschalter für anlasser DELCO REMY 1114523 / 1114524 / 1114525 / 1114526

= Referenz DELCO remy 8133925 / 1114531 / 1114557 / 1114562

1114564 / 1114566 / 1114569 / 1114571

= FORD  E3PZ11390A / E4FZ11390A

= 66-100-ca

Information:

Volt 12

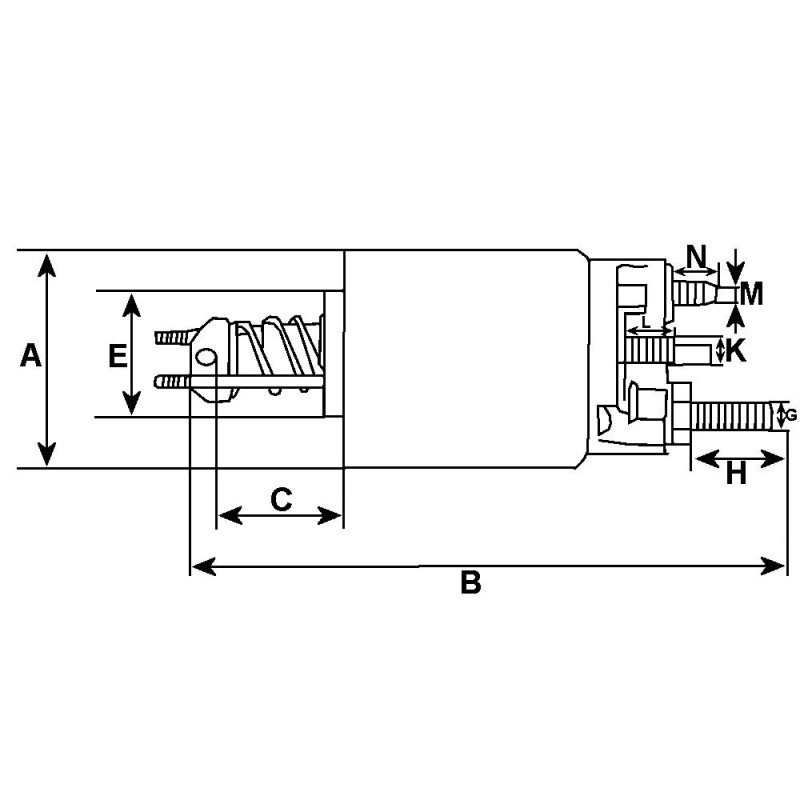

A = AD mm 59.90

B = Gesamtlänge mm 105.25

M = Wicklungbolzen l 3/8" UNC

D = AD/Deckel mm 65.55

E = ID/Deckel mm 28.50

Bemerkung Doppelt isoliert

G = B+ 3/8" UNC

H = Höhe/B+ 14.50

I = Kl. 15a/mm 10-32 UNF

K = Kl. 50/mm 10-32 UNF

J = Höhe/kl. 15a 10.00

For 5MT, 22MT

L = Höhe/kl. 50 10.00

Anschlüsseanzahl 4

generische Marke

für anlasser :

Allis-Chalmers 4885883R, 8620794, 8625404

American Motors 8953-000-760, 8953-002-0124

BOBCAT 6599152, 6633058, 6658835, 6658841, 6671014; Case A169502

CATERPILLAR 3T8191, 695324, 6F6848, 7N2137, 7N8402; CHRYSLER 8134193, 8982775000, 8982775013, 8982775013, JR775000, JR775013; CLARK 2385010, 316595, 999665

CUMMINS 3604481RX, 3604482RX, 3901365, 3901386, 3904445, 3905480, 3909913

DELCO REMY 10455001, 10455004, 10455006, 10455007, 10455015, 10455016, 10455017, 10455018, 10455019, 10455020, 10455021, 10455022, 10455023, 10455024, 10455044, 10455049, 10455052, 10455055, 10455300, 10455301, 10455305, 10455306, 10455307, 10455308, 10455312, 10455314, 10455315, 10455316, 10455317, 10455318, 10455319, 10455320, 10455321, 10455323, 10455324, 10455325, 10455326, 10455327, 10455328, 10455329, 10455330, 10455331, 10455332, 10455333, 10455334, 10455336, 10455337, 10455338, 10455339, 10455340, 10455341, 10455343, 10455347, 10455348, 10455349, 10455350, 10455351, 10455352, 10455353, 10455354, 10455355, 10455356, 10455357, 10455500, 10455602, 10455604, 10456017, 10461070, 10465008, 10465018, 10465020, 10465023, 10465025, 10465027, 10465028, 10465029, 10465031, 10465032, 10465033, 10465034, 10465035, 10465036, 10465037, 10465059, 10465102, 10465149, 10465394, 10465409, 10465416, 10465423, 10465430, 10495396, 10495397, 10495398, 10496871, 10496872, 10496873, 10496875, 10496876, 10496878, 10496880, 10496882, 10496883, 10496885, 10496888, 10496889, 10496890, 10497396, 1107245, 1107286, 1107712, 1108385, 1108447, 1108448, 1108481, 1108752, 1108754, 1109033, 1109035, 1109053, 1109076, 1109077, 1109086, 1109097, 1109214, 1109218, 1109219, 1109262, 1109265, 1109361, 1109446, 1109447, 1109495, 1109527, 1109531, 1109532, 1109533, 1109534, 1109535, 1109537, 1109538, 1109544, 1109551, 1109556, 1109560, 1109561, 1109562, 1109563, 1109564, 1113589, 1113593, 1113597, 1113598, 1113599, 12301483, 12303394, 12304738, 15555619, 1876553, 19133917, 19133953, 19136124, 19136132, 19136141, 19136142, 19136149, 19136150, 19136158, 19136189, 19136196, 19136198, 19136199, 19136200, 19136202, 19136202, 19136203, 19136205, 19136208, 19136211, 1977079, 1977083, 1977085, 1977091, 1984536, 1987287, 1987287, 1987288, 1987289, 1987332, 1987495, 1988430, 1988603, 1988709, 1988710, 1988711, 1988714, 1988716, 1988717, 1988718, 1988719, 1988720, 1988721, 1988721, 1988722, 1988723, 1988724, 1988725, 1989453, 1989454, 1998204, 1998205, 1998224, 1998226, 1998229, 1998230, 1998233, 1998234, 1998235, 1998236, 1998237, 1998238, 1998239, 1998240, 1998241, 1998242, 1998243, 1998244, 1998245, 1998246, 1998247, 1998248, 1998249, 1998251, 1998252, 1998253, 1998258, 1998259, 1998260, 1998261, 1998262, 1998263, 1998264, 1998265, 1998266, 1998267, 1998269, 1998270, 1998271, 1998272, 1998273, 1998274, 1998276, 1998279, 1998280, 1998281, 1998282, 1998283, 1998284, 1998285, 1998286, 1998287, 1998288, 1998289, 1998290, 1998292, 1998293, 1998294, 1998295, 1998297, 1998298, 1998299, 1998300, 1998301, 1998302, 1998303, 1998304, 1998305, 1998306, 1998307, 1998308, 1998309, 1998310, 1998311, 1998313, 1998316, 1998317, 1998323, 1998324, 1998325, 1998326, 1998327, 1998328, 1998329, 1998330, 1998331, 1998332, 1998333, 1998334, 1998335, 1998336, 1998337, 1998338, 1998339, 1998340, 1998341, 1998342, 1998343, 1998344, 1998345, 1998346, 1998347, 1998348, 1998349, 1998350, 1998352, 1998353, 1998354, 1998355, 1998356, 1998357, 1998358, 1998359, 1998360, 1998361, 1998362, 1998363, 1998364, 1998365, 1998366, 1998367, 1998368, 1998370, 1998373, 1998374, 1998375, 1998376, 1998377, 1998378, 1998379, 1998380, 1998381, 1998382, 1998383, 1998384, 1998385, 1998386, 1998387, 1998388, 1998389, 1998390, 1998391, 1998392, 1998393, 1998394, 1998395, 1998396, 1998397, 1998398, 1998399, 1998400, 1998402, 1998403, 1998408, 1998410, 1998411, 1998412, 1998413, 1998414, 1998415, 1998416, 1998418, 1998419, 1998422, 1998423, 1998424, 1998427, 1998428, 1998429, 1998430, 1998431, 1998433, 1998434, 1998435, 1998436, 1998437, 1998438,

für :

Agco Gleaner (1987-1988) , ALLIS CHALMERS (1974-1986) , American Motors (1982-1983) , BOBCAT (1981-1998) , BUICK (1979-1995) , CADILLAC (1979-1992) , Carrier Transicold (1976-1998) , Case (1973-1994) , CATERPILLAR Ag. & Ind. (1979-1986) , CHAMPION (1977-1988) , CHEVROLET (1970-1995) , CHEVROLET - Europe (1999-2005) , CLARK (1963-1995) , CUMMINS Motors (1980-1988) , CUMMINS Marine Motors (1985-1989) , DEUTZ-Allis (1987-1988) , DEUTZ-Fahr (1987-1994) , DMT Corporation (1984-1986) , Dresser (1984-1992) , Flaherty (1982-1988) , FORD (1983-1984) , Freightliner (1992-2001) , GMC (1970-1995) , HYSTER (1968-2006) , International (1978-1984) , ISUZU (1989-1992) , JEEP (1982-1986) , JOHN DEERE (1971-2005) , KENWORTH (1994-2007) , Lister-Petter (1986-1988) , Mack (1986-1991) , MASSEY FERGUSON (1986-1994) , MERCRUISER (1978-1998) , NEW HOLLAND Industrial (1981-1988) , OLDSMOBILE (1979-1995) , OMC (1982-1985) , PERKINS (1983-1988) , PONTIAC (1980-1995) , RENAULT Heavy Duty - Europe (1979-1993) , Saviem (1973-1980) , Teledyne - Continental (1965-1986) , Teledyne - Wisconsin (1960-1985) , Timberjack (1996-2007) , Versatile (1978-1985) , Waukesha (1979-1990) , White Industrial (1988-1992) , Yale (1985-2002)
