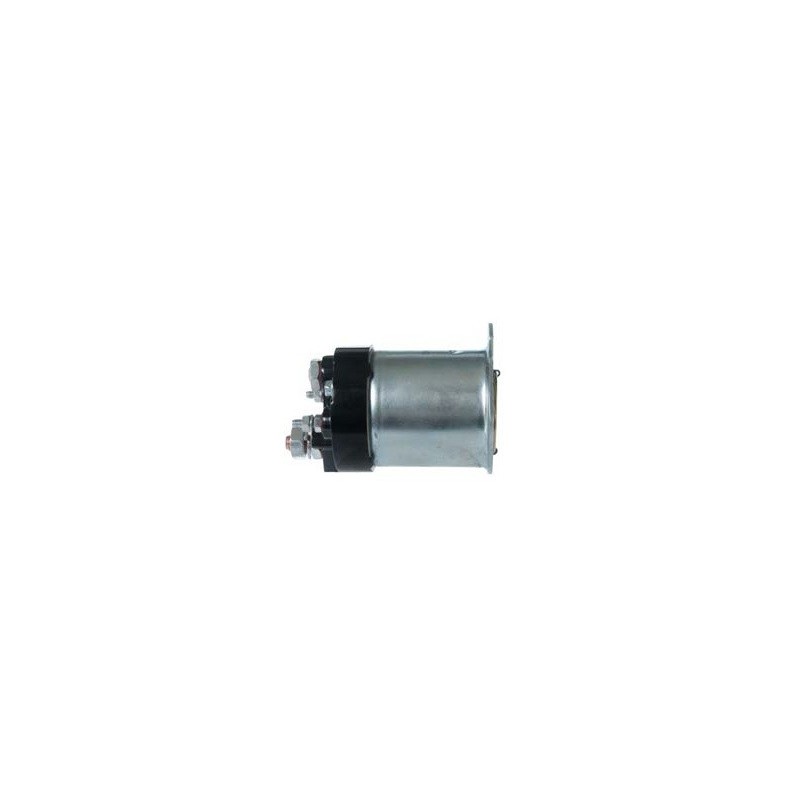

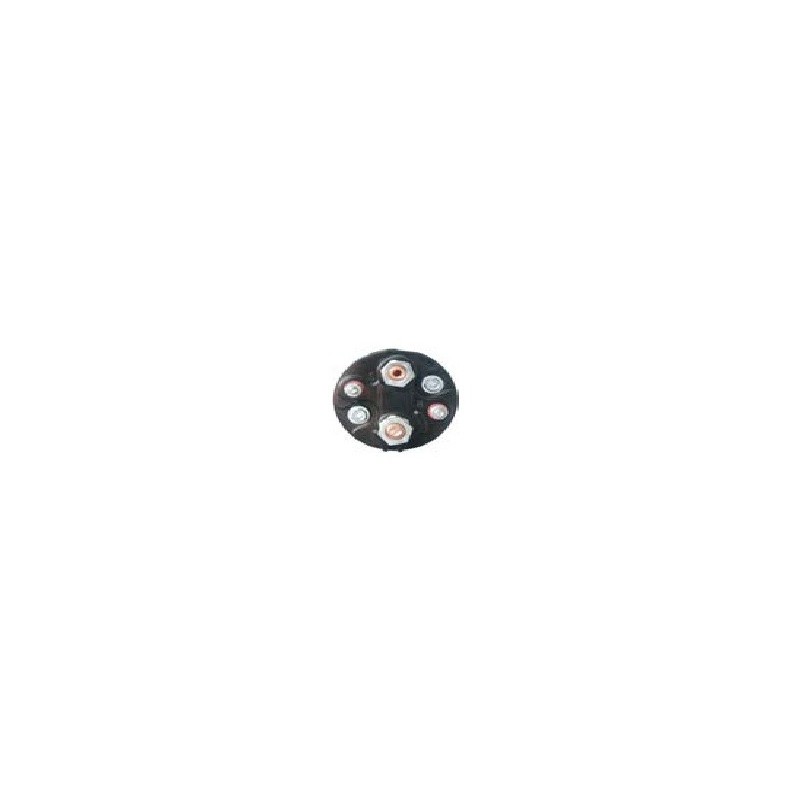

Solenoide para motor de arranque Delco remy 1114523 / 1114524 / 1114525 / 1114526

= referencia delco remy 8133925 / 1114531 / 1114557 / 1114562

1114564 / 1114566 / 1114569 / 1114571

= Ford  E3PZ11390A / E4FZ11390A

= 66-100-ca

Características :

Voltaje 12

A = DE mm 59.90

B = Longitud total mm 105.25

M = Perno de bobina 3/8" UNC

D = DE/capó mm 65.55

E = DI capó mm 28.50

Observaciones Ryour isolé

G = B+ 3/8" UNC

H = Altura/B+ 14.50

I = Kl. 15a/mm 10-32 UNF

K = Kl. 50/mm 10-32 UNF

J = Ancho/kl. 15a 10.00

Para 5MT, 22MT

L = Ancho/kl. 50 10.00

No. terminals 4

marca genérica

para motor de arranque :

Allis-Chalmers 4885883R, 8620794, 8625404

American Motors 8953-000-760, 8953-002-0124

Bobcat 6599152, 6633058, 6658835, 6658841, 6671014; Case A169502

Caterpillar 3T8191, 695324, 6F6848, 7N2137, 7N8402; Chrysler 8134193, 8982775000, 8982775013, 8982775013, JR775000, JR775013; Clark 2385010, 316595, 999665

Cummins 3604481RX, 3604482RX, 3901365, 3901386, 3904445, 3905480, 3909913

Delco 10455001, 10455004, 10455006, 10455007, 10455015, 10455016, 10455017, 10455018, 10455019, 10455020, 10455021, 10455022, 10455023, 10455024, 10455044, 10455049, 10455052, 10455055, 10455300, 10455301, 10455305, 10455306, 10455307, 10455308, 10455312, 10455314, 10455315, 10455316, 10455317, 10455318, 10455319, 10455320, 10455321, 10455323, 10455324, 10455325, 10455326, 10455327, 10455328, 10455329, 10455330, 10455331, 10455332, 10455333, 10455334, 10455336, 10455337, 10455338, 10455339, 10455340, 10455341, 10455343, 10455347, 10455348, 10455349, 10455350, 10455351, 10455352, 10455353, 10455354, 10455355, 10455356, 10455357, 10455500, 10455602, 10455604, 10456017, 10461070, 10465008, 10465018, 10465020, 10465023, 10465025, 10465027, 10465028, 10465029, 10465031, 10465032, 10465033, 10465034, 10465035, 10465036, 10465037, 10465059, 10465102, 10465149, 10465394, 10465409, 10465416, 10465423, 10465430, 10495396, 10495397, 10495398, 10496871, 10496872, 10496873, 10496875, 10496876, 10496878, 10496880, 10496882, 10496883, 10496885, 10496888, 10496889, 10496890, 10497396, 1107245, 1107286, 1107712, 1108385, 1108447, 1108448, 1108481, 1108752, 1108754, 1109033, 1109035, 1109053, 1109076, 1109077, 1109086, 1109097, 1109214, 1109218, 1109219, 1109262, 1109265, 1109361, 1109446, 1109447, 1109495, 1109527, 1109531, 1109532, 1109533, 1109534, 1109535, 1109537, 1109538, 1109544, 1109551, 1109556, 1109560, 1109561, 1109562, 1109563, 1109564, 1113589, 1113593, 1113597, 1113598, 1113599, 12301483, 12303394, 12304738, 15555619, 1876553, 19133917, 19133953, 19136124, 19136132, 19136141, 19136142, 19136149, 19136150, 19136158, 19136189, 19136196, 19136198, 19136199, 19136200, 19136202, 19136202, 19136203, 19136205, 19136208, 19136211, 1977079, 1977083, 1977085, 1977091, 1984536, 1987287, 1987287, 1987288, 1987289, 1987332, 1987495, 1988430, 1988603, 1988709, 1988710, 1988711, 1988714, 1988716, 1988717, 1988718, 1988719, 1988720, 1988721, 1988721, 1988722, 1988723, 1988724, 1988725, 1989453, 1989454, 1998204, 1998205, 1998224, 1998226, 1998229, 1998230, 1998233, 1998234, 1998235, 1998236, 1998237, 1998238, 1998239, 1998240, 1998241, 1998242, 1998243, 1998244, 1998245, 1998246, 1998247, 1998248, 1998249, 1998251, 1998252, 1998253, 1998258, 1998259, 1998260, 1998261, 1998262, 1998263, 1998264, 1998265, 1998266, 1998267, 1998269, 1998270, 1998271, 1998272, 1998273, 1998274, 1998276, 1998279, 1998280, 1998281, 1998282, 1998283, 1998284, 1998285, 1998286, 1998287, 1998288, 1998289, 1998290, 1998292, 1998293, 1998294, 1998295, 1998297, 1998298, 1998299, 1998300, 1998301, 1998302, 1998303, 1998304, 1998305, 1998306, 1998307, 1998308, 1998309, 1998310, 1998311, 1998313, 1998316, 1998317, 1998323, 1998324, 1998325, 1998326, 1998327, 1998328, 1998329, 1998330, 1998331, 1998332, 1998333, 1998334, 1998335, 1998336, 1998337, 1998338, 1998339, 1998340, 1998341, 1998342, 1998343, 1998344, 1998345, 1998346, 1998347, 1998348, 1998349, 1998350, 1998352, 1998353, 1998354, 1998355, 1998356, 1998357, 1998358, 1998359, 1998360, 1998361, 1998362, 1998363, 1998364, 1998365, 1998366, 1998367, 1998368, 1998370, 1998373, 1998374, 1998375, 1998376, 1998377, 1998378, 1998379, 1998380, 1998381, 1998382, 1998383, 1998384, 1998385, 1998386, 1998387, 1998388, 1998389, 1998390, 1998391, 1998392, 1998393, 1998394, 1998395, 1998396, 1998397, 1998398, 1998399, 1998400, 1998402, 1998403, 1998408, 1998410, 1998411, 1998412, 1998413, 1998414, 1998415, 1998416, 1998418, 1998419, 1998422, 1998423, 1998424, 1998427, 1998428, 1998429, 1998430, 1998431, 1998433, 1998434, 1998435, 1998436, 1998437, 1998438,

montaje en:

Agco Gleaner (1987-1988) , Allis Chalmers (1974-1986) , American Motors (1982-1983) , Bobcat (1981-1998) , Buick (1979-1995) , Cadillac (1979-1992) , Carrier Transicold (1976-1998) , Case (1973-1994) , Caterpillar Ag. & Ind. (1979-1986) , Champion (1977-1988) , Chevroly (1970-1995) , Chevroly - Europe (1999-2005) , Clark (1963-1995) , Cummins Engines (1980-1988) , Cummins Marine Engines (1985-1989) , Deutz-Allis (1987-1988) , Deutz-Fahr (1987-1994) , DMT Corporation (1984-1986) , Dresser (1984-1992) , Flaherty (1982-1988) , Ford (1983-1984) , Freightliner (1992-2001) , GMC (1970-1995) , Hyster (1968-2006) , International (1978-1984) , Isuzu (1989-1992) , Jeep (1982-1986) , John Deere (1971-2005) , Kenworth (1994-2007) , Lister-Pyter (1986-1988) , Mack (1986-1991) , Massey Ferguson (1986-1994) , Mercruiser (1978-1998) , New Holland Industrial (1981-1988) , Oldsmobile (1979-1995) , OMC (1982-1985) , Perkins (1983-1988) , Pontiac (1980-1995) , Renault Heavy Duty - Europe (1979-1993) , Saviem (1973-1980) , Teledyne - Continental (1965-1986) , Teledyne - Wisconsin (1960-1985) , Timberjack (1996-2007) , Versatile (1978-1985) , Waukesha (1979-1990) , White Industrial (1988-1992) , Yale (1985-2002)
