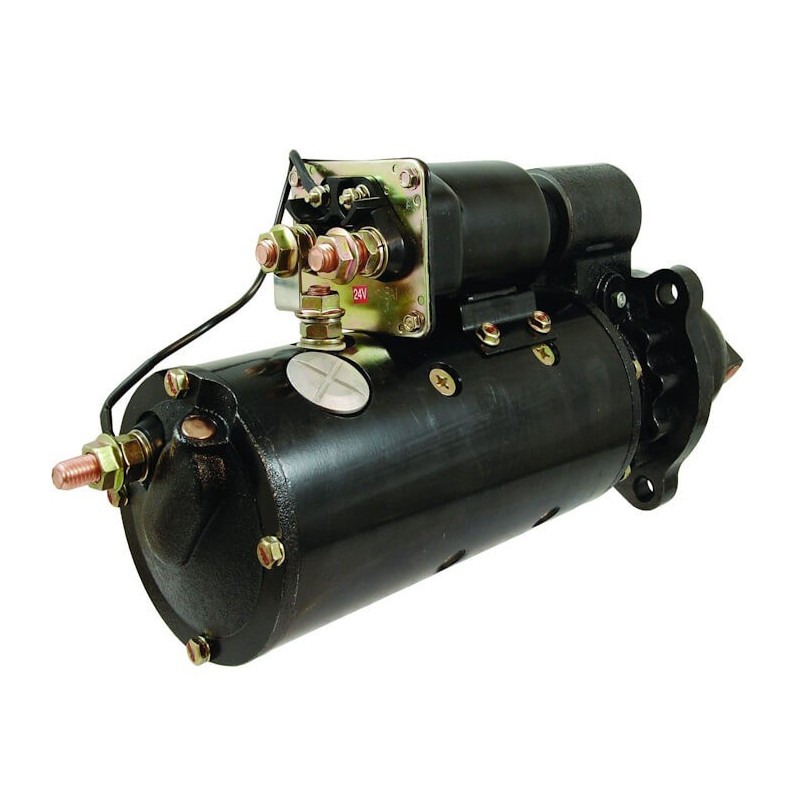

Démarreur remplace Case 307822R92 / 317941R92 / 627589C91
Démarreur NEUF pour CASE, CATERPILLAR, MACK TRUCK, FORD
=Cummins 706620 / 3603862RX / 3021036 / 135162
=Ford C4TF-11000-A / C4TZ-11002-A / C4TF-A
=Fiat Allis 73061273 / 73069398 / 73116947 / 73117237
ATTENTION MODELE AVEC OUVERTURE DU LANCEUR DANS L'AUTRE SENS SE TROUVE SOUS LA REFERENCE W111000
PAS DE CONSIGNE NI DE RETOUR DE L'ANCIEN DEMANDE
Caractéristiques
Caractéristiques :
Voltage 24 - KW 7.5 - Double Isolation
Position du solénoide : 38°

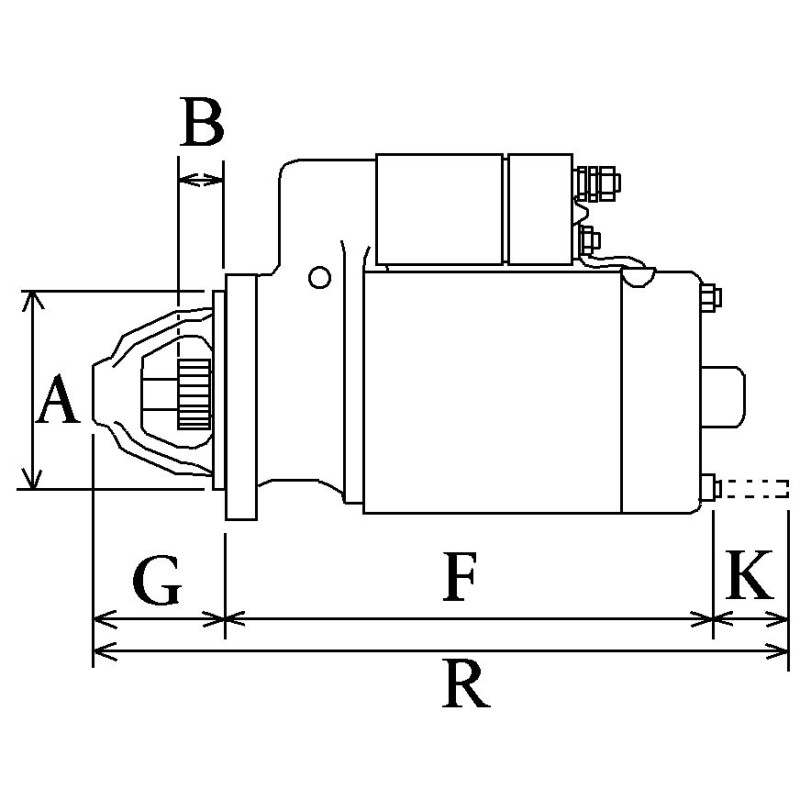

Spécifications physiques | ||
|---|---|---|
| A | Flasque montage | 92.00 |
| E | Trou de montage | 16.50 |
| E | Trou de montage 2 | 16.50 |
| E | Trou de montage 3 | 16.50 |
| B | Distance lanceur | 47.00 |
| F | Distance/arrière | 374.00 |
| G | Distance/avant | 101.50 |
| H | No. de dents | 11 |
| I | B+ | 1/2" UNC |
| S | B- | 1/2" UNC |
| N | Type couronne | Dd |
| O | Distance mm | 127.00 |
| O | Distance 2 | 127.00 |
| O | Distance 3 | 127.00 |
| P | Rotation | Cr |
| R | Longueur totale mm | 522.00 |
Marque générique
remplace
Bosch 0 001 420 002, 0 001 420 006, 0 001 420 008, Case 307822R92, 313979R92, 317941R92, 439677R91, 627589C91, 690400C91, 755496C91, 989969R91, Caterpillar 0R5209, 2T0797, 3T2646, 3T2649, 3T2650, 3T3152, 3T3153, 4N8118, 4N957, 5L2537, 5L2637, 5L537, 5L637, 6N3122, 7L8797, 7T0794, 7T0800, 7T0801, 7T0806, 8C3644, 8C3649, 8H1813, 9G5584, 9G5585, 9G8854, 9L6691, 9N0435, 9N0453, Cummins 135162, 3021036, 3603862RX, 706620, Delco 10451047, 10461047, 10461179, 1108873, 1108881, 1109702, 1109704, 1109705, 1109708, 1109723, 1109745, 1109762, 1109765, 1109898, 1113710, 1113715, 1113726, 1113738, 1113782, 1113792, 1113809, 1113813, 1113818, 1113820, 1113824, 1113825, 1113831, 1113842, 1113844, 1113845, 1113846, 1113847, 1113849, 1113850, 1113851, 1113855, 1113858, 1113860, 1113862, 1113866, 1113868, 1113872, 1113876, 1113883, 1113887, 1113892, 1113893, 1113894, 1113895, 1113898, 1113900, 1113902, 1113903, 1113905, 1113906, 1113910, 1113914, 1113915, 1113916, 1113920, 1113924, 1113926, 1113931, 1113935, 1113944, 1113948, 1113952, 1113955, 1113956, 1113957, 1113958, 1113965, 1113966, 1113968, 1113970, 1113971, 1113972, 1113973, 1113975, 1113976, 1113977, 1113978, 1113980, 1113981, 1113983, 1113991, 1113994, 1113995, 1113997, 1113999, 1114710, 1114715, 1114727, 1114728, 1114730, 1114737, 1114738, 1114755, 1114756, 1114760, 1114762, 1114776, 1114781, 1114784, 1114790, 1114842, 1114844, 1114846, 1114847, 1114848, 1114849, 1114850, 1114851, 1114852, 1114853, 1114854, 1114855, 1114873, 1114874, 1114875, 1114878, 1114879, 1114880, 1114903, 1114907, 1114909, 1114915, 1114916, 1114923, 1114935, 1114947, 1114950, 1114951, 1114958, 1114963, 1114964, 1114970, 1114971, 1114973, 1114974, 1114979, 1114981, 1114987, 1990202, 1990222, 1990279, 1990307, 1990328, 1990482, 1993700, Detroit Diesel R0461179, Fiat Allis 70620382, 70622235, 73061273, 73069398, 73116947, 73117237, 73130194, 73130195, 73130625, Ford C4TF-11000-A, C4TZ-11002-A, Ford Engineering C4TF-A, IHC, Navistar 307822R92, 313979R92, 317941R92, 439677R91, 627589C91, 690400C91, 755496C91, 989969R91, Letrika (Iskra) Tech. AZG4689, Mack Truck 8MJ176, Prestolite 46-2052, MES6103LUT, MS1-401A, Renault 5000811448, White V1114243
