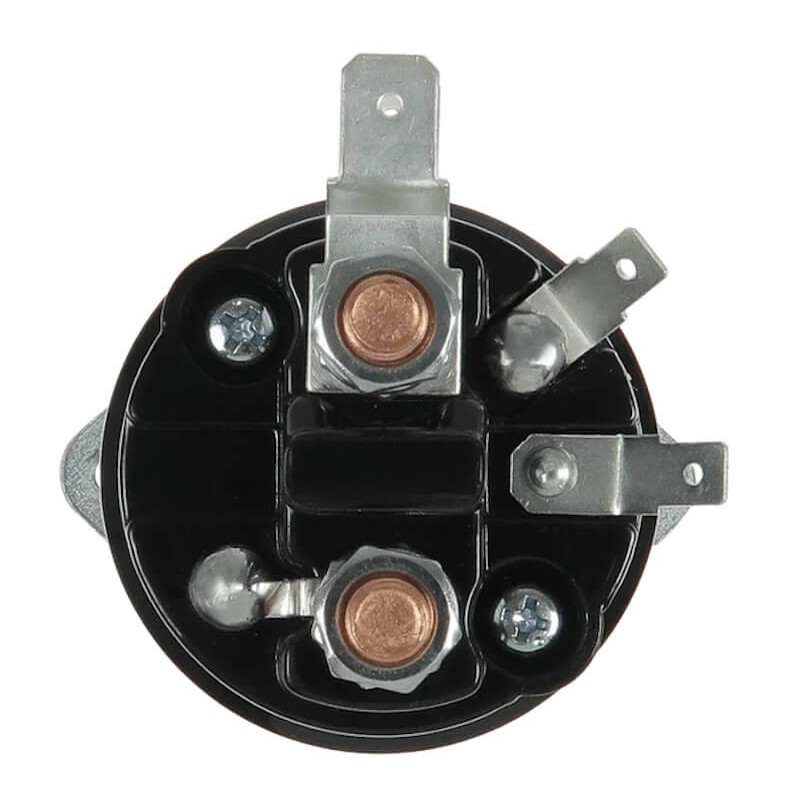

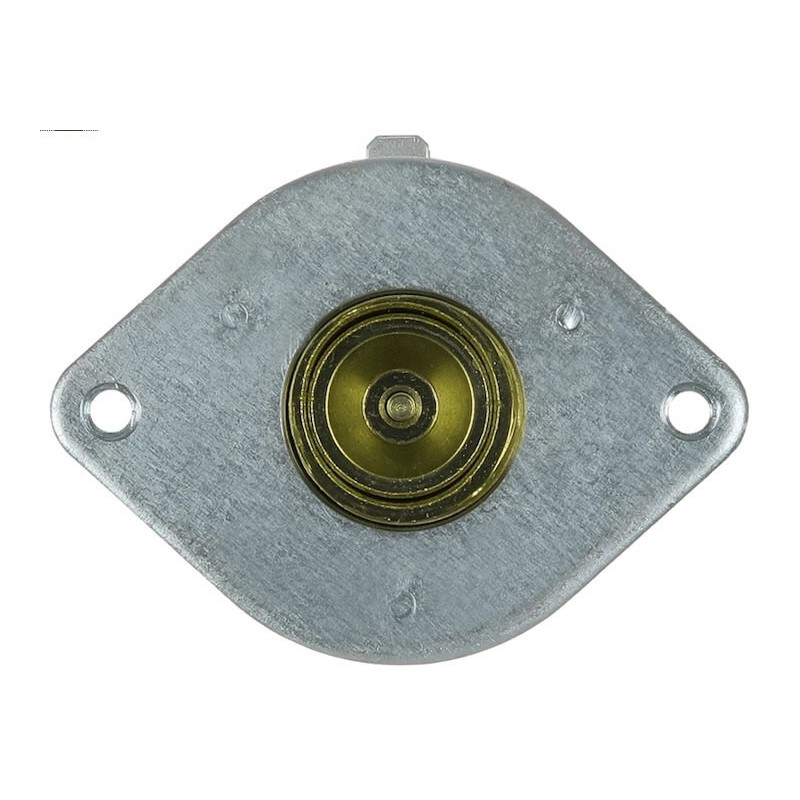

Relais / solenoide pour démarreur Lucas :
26327 | 27426F |
26327A | 27431 |
26327H | 27431A |
26335 | 27431B |
26335A | 27437 |
26348 | 27437A |
26348A | 27448 |
26348D | 27448A |
26362 | 27449 |
26362A | 27449A |
26362E | 27449B |
26364 | 27451B |
26364A | 27451D |
26364F | 27452 |
26372 | 27452A |
Caractéristiques :
Voltage 12
A = DE 53.65
B = Longueur totale 179.85
Boulon de la bobine M8
D = DE/capot 60.25
E = DI capot 26.40
B+ M8
Hauteur/B+ 19.25
Kl. 50/mm 6.30
Boulon de la bobine l. 19.25
Largeur/kl. 50 15.35
No. bornes 3
marque générique
= référence Lucas :
tpb131 / tpb103 / tob145 / tob131 / tob128 / tob119 / SSL0003 / 77169 / 77128 / 77092 / 77021 / 77011 / 76983
= WAI 66-9200 / WAI 66-9200-5 / WOOD-UK SND1417
ZM ZM-614
pour démarreur :
26327 | LUCAS | 27426F | LUCAS |
26327A | LUCAS | 27431 | LUCAS |
26327H | LUCAS | 27431A | LUCAS |
26335 | LUCAS | 27431B | LUCAS |
26335A | LUCAS | 27437 | LUCAS |
26348 | LUCAS | 27437A | LUCAS |
26348A | LUCAS | 27448 | LUCAS |
26348D | LUCAS | 27448A | LUCAS |
26362 | LUCAS | 27449 | LUCAS |
26362A | LUCAS | 27449A | LUCAS |
26362E | LUCAS | 27449B | LUCAS |
26364 | LUCAS | 27451B | LUCAS |
26364A | LUCAS | 27451D | LUCAS |
26364F | LUCAS | 27452 | LUCAS |
26372 | LUCAS | 27452A | LUCAS |
26372A | LUCAS | ||
26372B | LUCAS | ||
27426 | LUCAS | ||
27426A | LUCAS | ||
27426D | LUCAS |
