w195579050
Neuf
5 Article Produits
0210801200 | Denso | |
1012113581 | Denso | |
1012113582 | Denso | |
1012113583 | Denso | |
1012113681 | Denso | |
1012113682 | Denso | |
1012113683 | Denso | |
1012113732 | Denso | |
1012113733 | Denso | |
1012113861 | Denso | |
1012113862 | Denso | |
1012113863 | Denso | |
1012118580 | Denso | |
1012118581 | Denso | |
1012118582 | Denso |
Spécifications électriques | ||
---|---|---|
Voltage | 14 | |
Amp | 50 |

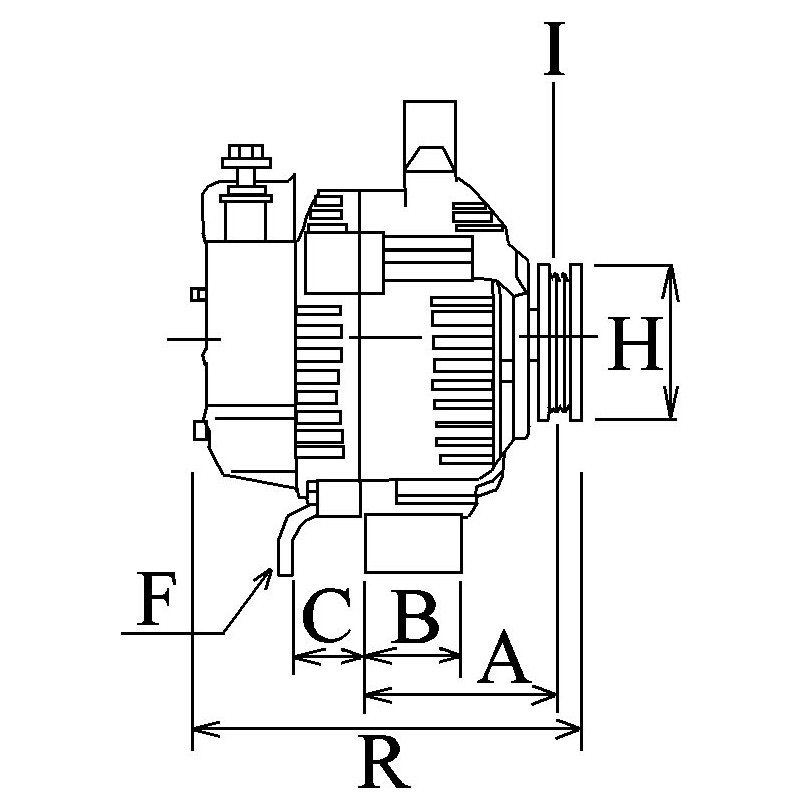

Spécifications physiques | ||
---|---|---|
D | Diamétre du trou | 10.50 |
G | Diamétre trou de la patte | M8 |
B | Largeur des bras | 58.00 |
E | Angle pâte tendeur | 60 |
H | Poulie dia. | 75.00 |
A | Dist. poulie | 99.00 |
i | Rainures de la poulie | 1 |
j | Radius | 85.00 |
j | Radius 2 | 80.00 |
k | Position B + | M6 |
n | Rotation | CW |

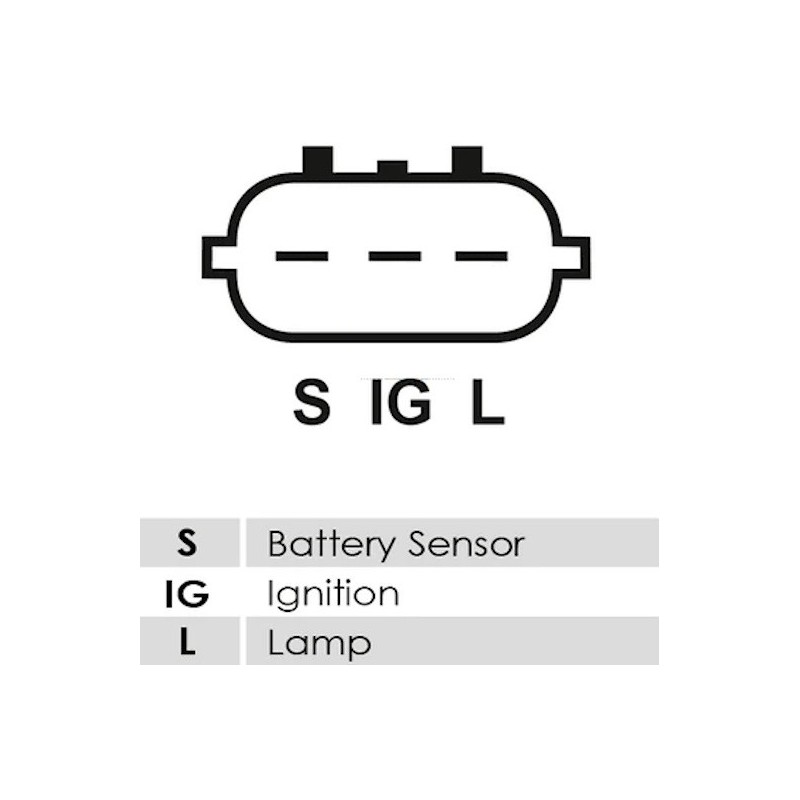

o | Connecteur regulateur | PL42 |
R | Longueur totale mm | 152.00 |
marque générique
Remplace :
101211-3730 | DENSO |
101211-3731 | DENSO |
101211-3860 | DENSO |
101211-8580 | DENSO |
101211-8650 | DENSO |
101211-8870 | DENSO |
102211-5850 | DENSO |
12357N | WAI / TRANSPO |
146-06113 | DIXIE |
20132861BN | REAL |
2040168 | SANDO |
27060-78156 | TOYOTA |
27060-78156-71 | TOYOTA |
27060-78157-71 | TOYOTA |
27060-78158-71 | TOYOTA |
27060-78160-71 | TOYOTA |
27060-78202-71 | TOYOTA |
27060-78203-71 | TOYOTA |
27060-78700-71 | TOYOTA |
27060-78701-71 | TOYOTA |
290-10271 | ROBERT'S |
553570RI | KUHNER |
A-8851 | DIXIE |
A6215 | AS-PL |
CAL40168 | CASCO |
CAL40168AS | CASCO |
CAL40168ES | CASCO |
CAL40168GS | CASCO |
CAL40168OS | CASCO |
CAL40168RS | CASCO |
CGB-13731 | AINDE |
RNL101211-3860 | RNL |
UD02270A | AS-PL |
447049 | LOGISTIK |
A12DE0121A2 | SIDAT |
ALT6110 | ELECTROLOG |
Montage sur :
Marque | Modèle | Type | Année |
TOYOTA | Lift Truck | [02-7FG30] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [02-7FGJF35] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [40-7FG23] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [40-7FG25] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [40-7FGK20] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [40-7FGK25] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [42-7FG15] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [42-7FG18] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [42-7FG20] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [42-7FG25] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [42-7FGK20] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [42-7FGK25] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FG10] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FG15] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FG20] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FG25] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FG30] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGCSU20] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGCU15] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGCU18] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGCU20] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGCU25] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGCU30] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGCU32] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGJ35] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGK20] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGK25] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGK30] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGU15] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGU18] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGU20] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGU25] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGU30] | 01.1993-12.2001 |
TOYOTA | Lift Truck | [7FGU32] | 01.1993-12.2001 |
