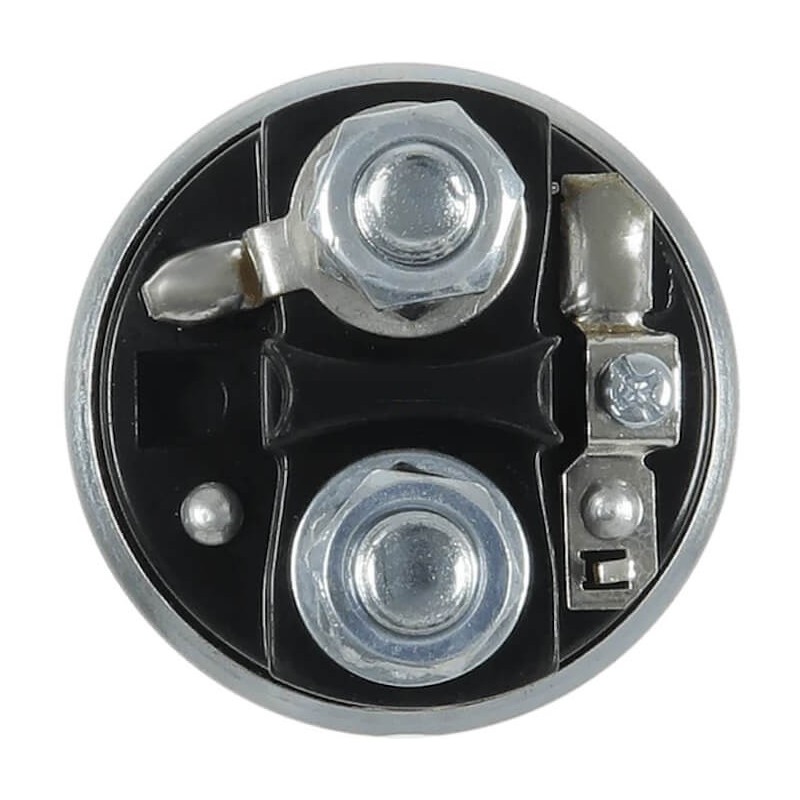

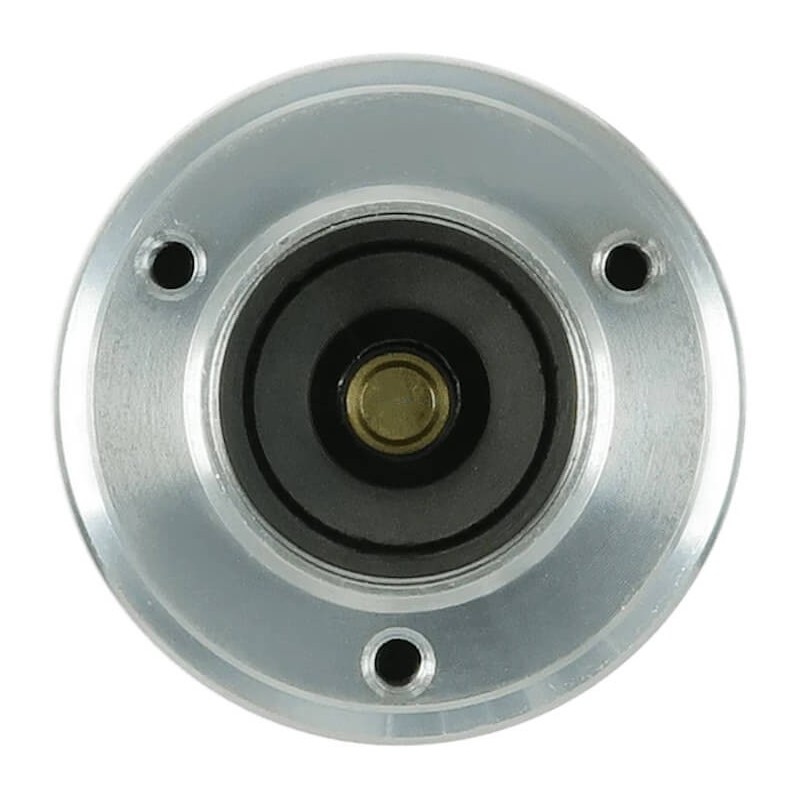

Magnetschalter für anlasser 0001360027 / 0001368016 / 0001368019 / 0001368020

Information:

Volt 24

A = AD mm 61.00

B = Gesamtlänge mm 161.85

M Wicklungbolzen l M10

D = AD/Deckel mm 53.35

E = ID/Deckel mm 29.80

G B+ M10

H = Höhe/B+ 21.90

K = Kl. 50/mm 4.70

N Wicklungbolzen l l. 15.75

L = Höhe/kl. 50 3.70

Anschlüsseanzahl 3

Generische Marke

für anlasser BOSCH:

0001360027 / 0001368016 / 0001368019 / 0001368020 / 0001368021 / 0001368037 / 0001368038 / 0001368056 / 0001368059

0001368063 / 0001368069, 0001368070, 0001368071, 0001368074, 0001368081, 0001368082, 0001368083, 0001368085, 0001368086, 0001368301, 0001368305, 0001368311, 0001368319, 0001368320, 0001816220, 9000083065, F000AL0157

Case 2997760, 2997760R, A186142, A187597, E41565, E41565EX, P941519Q, Q 941519; Caterpillar 1092361, OR1903; Cummins P941519Q; DAF 1201327, 1368083, 1516694R, 1516698R, 1516716R, 1516759R, 1516759R, 1516760R, 1516768R, 1516825R, 249915, 262046, 653721, AELB426, AELB737; Delco 19024233, 19024274

Deutz Engine Mfr 1164995, 1173241, 3043990, B29R24X4H7622; Faun 1701065; Fendt F 524 900 060 050, F 524 900 060 050, F 926 900 060 041, F 926 900 060 041, V 835 330 965; Fiat 4231018, 4231018, 4269114, 4682999, 4682999, 4691200, 4692477, 4706008, 4706720, 4706931, 4716026, 4716062, 4737756, 4744841, 4755108, 4755111, 4755113, 77040561, 77050262, 77050561, 77050562, 77065560, 77080560, 77080561, 77097430, 77130560, 7740560, 77414430, 77414431, 77444430, 77445430, 8862534, 8961386, 8962534, 8962534, 929162

Hanomag Massey Ferguson 2873306; Hatz 40098900, 401 014 00, 501 953 00, 501 954 00, 50195400; IHC, Navistar 787804R92; Iveco 1363111, 1368020, 1368082, 154011053, 4231018, 4231018, 42522641, 4269114, 4682999, 4682999, 4716026, 4744811, 4744841, 4755108, 4755111, 4854185, 504038038, 504072485, 77080560, 7740560, 77414431, 77445430

KHD 116-4995, 117-3241, 1215-3836, 12153819, 12153838, 468-2999; Letrika (Iskra) 11.131.353, 11.132.189; Letrika (Iskra) Tech. AZF4106, AZF4327, AZF4327, AZF4508, AZF4509, AZF4509, AZJ 3351, AZJ 3351, AZJ 3351, AZJ3113, AZJ3132, AZJ3132, AZJ3133, AZJ3133, AZJ3160, AZJ3172, AZJ3186, AZJ3188, AZJ3188, AZJ3231, AZJ3231, AZJ3231, AZJ3263, AZJ3263, AZJ3263, AZJ3374, AZJ3375, AZJ3387, AZJ3388, AZJ3413, AZJ3542, AZJ3593, AZJ3593; Letrika Old 11.130.595, 11.131.085, 11.131.143, 11.131.144, IS 0595, IS 0595; Liebherr 600-07-34, 620-06-62; Lucas 27 305

MAGNETON 9-124-310, 9-124-310, 9-124-320, 9-124-320, 9-124-320, 9-124-330, 9-124-330, 9-124-330, 9-124-330, 9-124-340, 9-124-340, 9-142-602; MAN 50-26201-7084, 51 26101 7244, 51 26201 7140, 51 26201 7143, 51 26201 7143, 51 26201 7157, 51 26201 7157, 51 26201 7158, 51 26201 7183, 51 26201 7183, 51 26201 7188, 51 26201 7189, 51 26201 7189, 51 26201 7191, 51 26201 7192, 51 26201 7210, 51 26201 7210, 51 26201 7212, 51 26201 7213, 51 26201 7213, 51 26201 7244, 51 26201 7245, 51 26201 9140, 51 26201 9143, 51 26201 9143, 51 26201 9157, 51 26201 9157, 51 26201 9183, 51 26201 9183, 51 26201 9212, 51 26201 9213, 51 26201 9213, 51-26201-7095, 51-26201-7119, 51-26201-7146, 51.26201.7153, 51.26201.9119, 81 26201 9013, 81-26201-9011, 81-26201-9013; Marelli 063522310030, 063522310100
