Lichtmaschine ersetzt HITACHI LR150-55B / LR150-55 / LR150- 205B / LR150-205 / LR150-201B

Information:

Volt 14

Amp 50

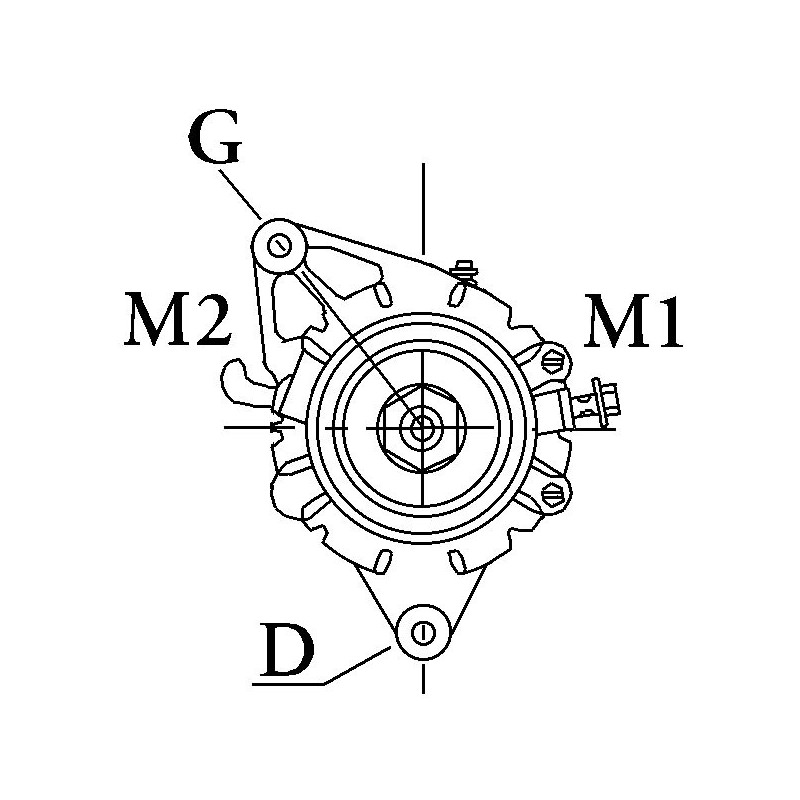

D = Haltearmloch 10.20

G = Riemenspannloch M8

B = Breite/Halterarm 13.25

E = Riemenspannloch pos. 55

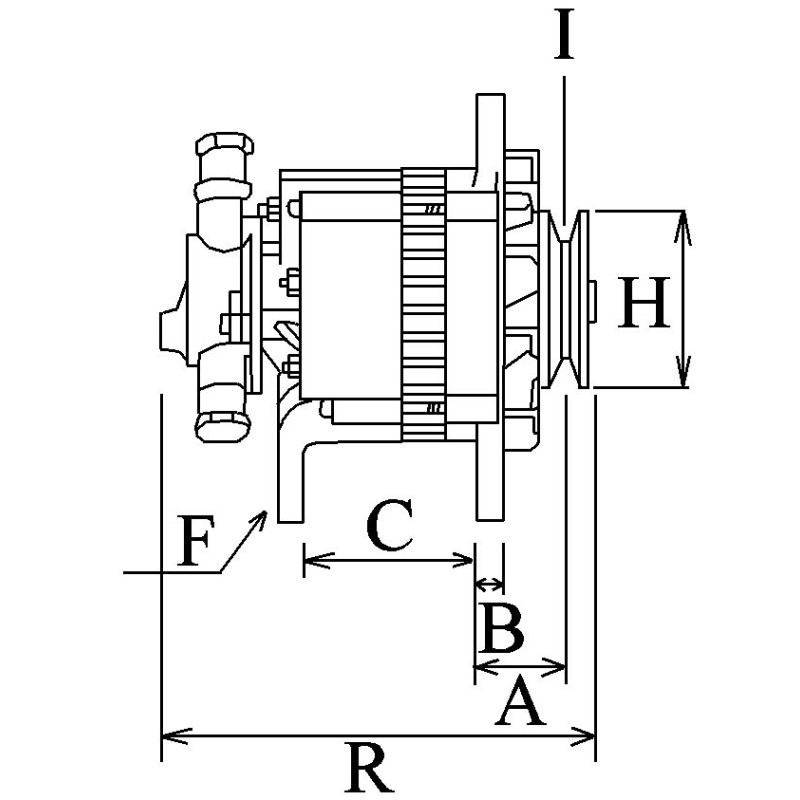

C = Abs./Aufhängung 99.40

H = Riemenscheibe D 83.50

A = Abstand/Riemenscheibe 48.85

Spur/Riemensch. 1

J = Radius 90.00

J = Radius 84.40

B+ Position 9.30

Umlaufsrichtung Cr

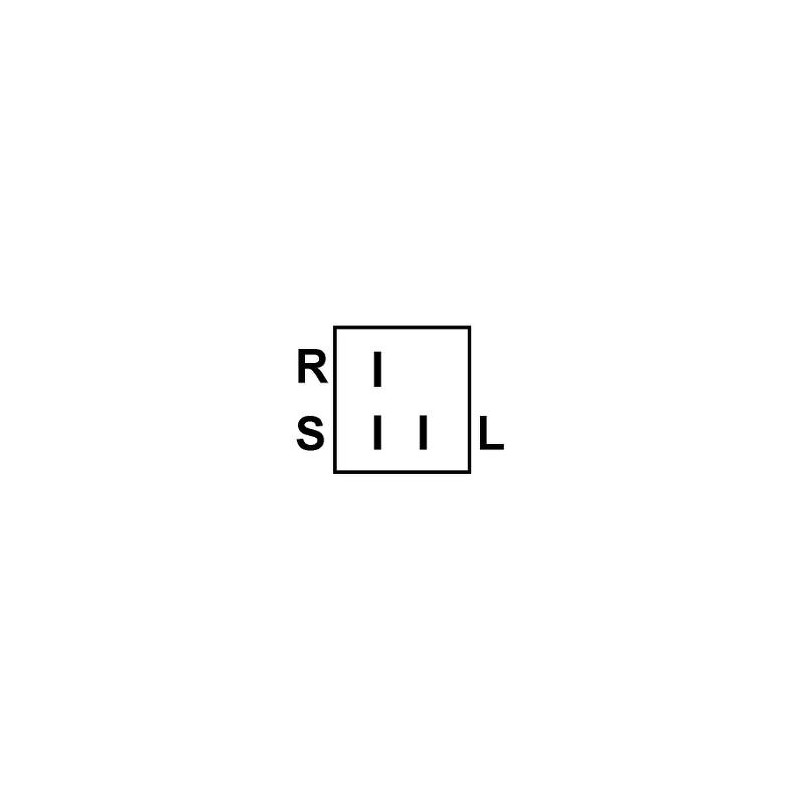

Anschluss Nr. 1 PL01

Fan Ef

Riemens Riemens

R = Gesamtlänge mm 270.00

generische Marke

ersetzt

= HITACHI lr150-136 / lr150-136b / LR150-136C / lr150-136e / lr150-155 / lr150-155b / lr150-201 / lr150-201b / lr150-205 / lr150-205b / lr150-55 / lr150-55b

= OPEL 94405044

= ISUZU 5812003161 / 5812003162 / 5812003163 / 8944017932 / 8944050440 / 8944050442

für :

ISUZU BIGHORN (UBS) 2.2 D 4x4 (1984-1989)
ISUZU BIGHORN (UBS) 2.2 D 4x4 (1984-1989)
ISUZU BIGHORN (UBS) 2.2 TD (UBS52) (1984-1991)
ISUZU CAMPO (KB) 2.5 D (KBD27) (1983-1990)
ISUZU CAMPO (KB) 2.5 D 4WD (KBD47) (1983-1990)
ISUZU CAMPO (KB) 2.2 D 4WD (KBD42, KBD47) (1983-1990)
ISUZU CAMPO (KB) 2.2 D (KBD27) (1986-1990)
ISUZU CAMPO (KB) 2.2 D (KBD27) (1983-1991)
ISUZU TROOPER (UBS) 2.2 D 4x4 (1984-1989)
ISUZU TROOPER (UBS) 2.2 D 4x4 (1984-1989)
ISUZU TROOPER (UBS) 2.2 TD (UBS52) (1984-1991)
OPEL CAMPO (TF_) 2.2 D (TFR52) (1987-1990)
OPEL CAMPO (TF_) 2.2 D (TFR52) (1991-1996)
OPEL CAMPO (TF_) 2.2 D 4x4 (TFS52) (1991-1996)

                                               ZWEI JAHRE GARANTIE

                            KEINE RÜCKGABE DES ALTEN ANTRAGS
