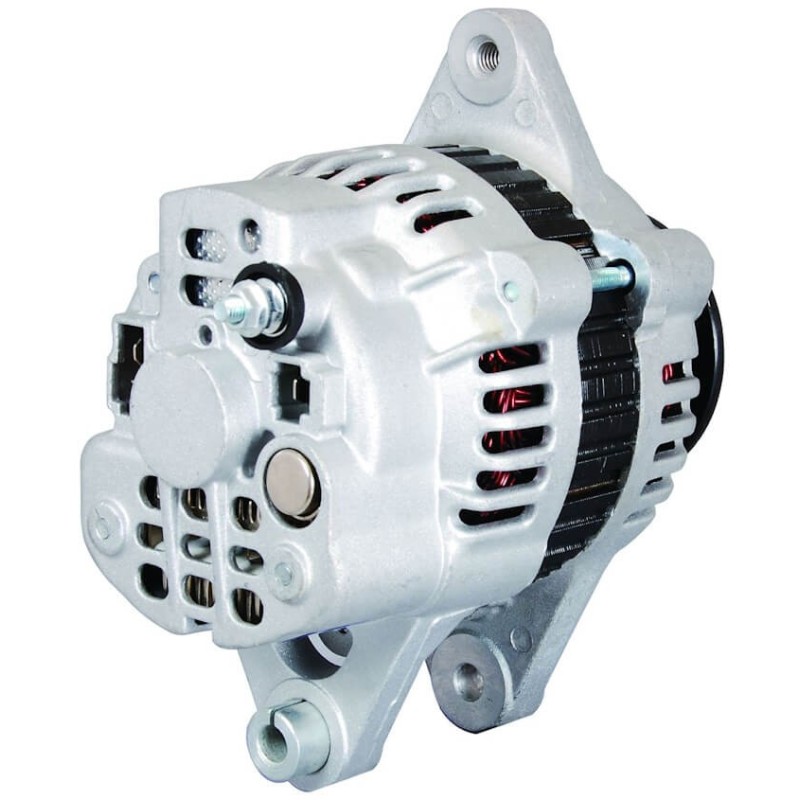

Lichtmaschine NEU für CATERPILLAR / Cub cadet / MITSUBISHI / Toro
= CATERPILLAR 1038008 / 138008
= MITSUBISHI A000T25171 / A000T25271 / A000T25371 / A000T25471 / a0t25171
MM131020 / MM432804 / MM435081 / MM435751 / MM435752 / A0T25171
= PRESTOLITE 66021126M
= Sole diesel 13827210
= Toro 67-4630
= Vetus marine STM1243
Information:
Umlaufsrichtung Cr
Amp 40
Volt 14
Anschluss W
D = Haltearmloch 8.50
G = Riemenspannloch M8
B = Breite/Halterarm 16.75
E = Riemenspannloch pos. 60
C = Abs./Aufhängung 41.00
H = Riemenscheibe D 70.20
A = Abstand/Riemenscheibe 42.00
Spur/Riemensch. 1
J = Radius 74.45
J = Radius 2 70.00
B+ Position M5

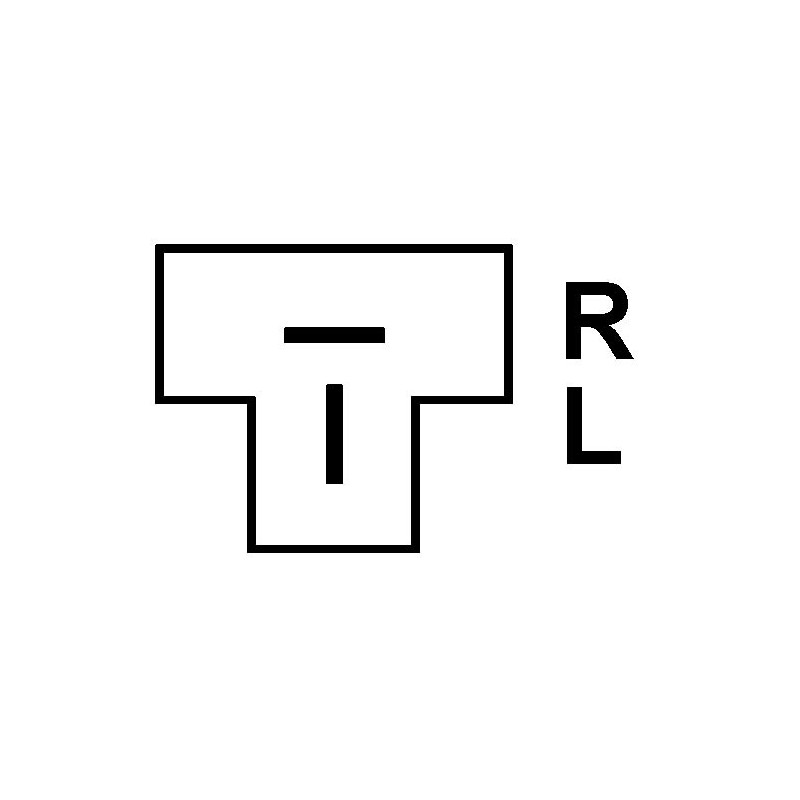

Anschluss Nr. 1 PL09
Fan If
Riemens Riemens
Reglertyp Ir
R = Gesamtlänge mm 154.50
generische Marke
= CATERPILLAR 1038008 / 138008
= MITSUBISHI A000T25171 / A000T25271 / A000T25371 / A000T25471
MM131020 / MM432804 / MM435081 / MM435751 / MM435752
= PRESTOLITE 66021126M
= Sole diesel 13827210
= Toro 67-4630
= Vetus marine STM1243
Für :
Marke | Modell | Type | Jahre |
CASE | 7195 | 01.1995-12.2005 | |
CASE | 7235 | 01.1995-12.2005 | |
CASE | 1120 | [3-65] | 01.1991-12.1992 |
CASE | 1130 | [3-75] | 01.1991-12.1992 |
CASE | 1140 | [3-91] | 01.1991-12.1992 |
CATERPILLAR | GP40 | 01.1997-12.2007 | |
CATERPILLAR | GPL40 | 01.1997-12.2007 | |
CUB CADET | 7192 | [(19HP)3-65] | 01.1995-12.1997 |
CUB CADET | 7193 | [(19HP)3-65] | 01.1996-12.1997 |
CUB CADET | 7194 | [(19HP)3-65] | 01.1995-12.1997 |
CUB CADET | 7195 | [(19HP)3-65] | 01.1995-12.1997 |
CUB CADET | 7232 | [(23HP)3-75] | 01.1995-12.1997 |
CUB CADET | 7233 | [(23HP)3-75] | 01.1996-12.1997 |
CUB CADET | 7234 | [(23HP)3-75] | 01.1995-12.1997 |
CUB CADET | 7235 | [(23HP)3-75] | 01.1995-12.1997 |
CUB CADET | 7272 | [(27HP)3-91] | 01.1995-12.1997 |
CUB CADET | 7273 | [(27HP)3-91] | 01.1996-12.1997 |
CUB CADET | 7274 | [(27HP)3-91] | 01.1995-12.1997 |
CUB CADET | 7275 | [(27HP)3-91] | 01.1995-12.1997 |
CUB CADET | 7300 | [(30HP)3-91] | 01.1998-12.2003 |
CUB CADET | 7305 | [(30HP)3-91] | 01.1998-12.2003 |
HURLIMANN | Prince 325 | ||
HURLIMANN | Prince 325XV | ||
HURLIMANN | Prince 435 | ||
HURLIMANN | Prince 445 | ||
MITSUBISHI | FG-40G | [6G72] | |
MITSUBISHI | FG-40G2 | [6G72] | |
MITSUBISHI | FG-40LP | [6G72] | |
MITSUBISHI | FG-40LP2 | [6G72] | |
MITSUBISHI | FG-40LPS | [6G72] | |
MITSUBISHI | Engine | [K3] | 01.1987-12.1997 |
MITSUBISHI | Engine | [K4E] | 01.1987-12.1997 |
MITSUBISHI | Engine | [K4M] | |
MITSUBISHI | Engine | [L3C] | |
MITSUBISHI | Engine | [L3E] | |
MITSUBISHI | Engine | [L3] | 01.1986-12.1996 |
SAME | Solaris 45 | [4-91] | 01.1999-12.2009 |
SOLE DIESEL | Engine 0.5 | [Mini-11] | |
SOLE DIESEL | Engine 0.6 | [Mini-17] | |
SOLE DIESEL | Engine 1.0 | [Mini-26] | |
SOLE DIESEL | Engine 1.0 | [Mini-29] | |
SOLE DIESEL | Engine 2.0 | [Mini-48] | |
TORO | Greensmaster 3000D | 01.1990-12.2000 | |
TORO | Groundsmaster 220D | 01.1988-12.1991 | |
TORO | Groundsmaster 223D | 01.1992-12.1997 | |
TORO | Groundsmaster 224 | 01.1989-12.1996 | |
TORO | Reelmaster 223D | [L3E] | 01.1988-12.1992 |
TORO | Reelmaster 5100D | 01.1990-12.1998 | |
TORO | Workman 3300D | [L3E] | 01.1993-12.1998 |
TORO | Workman 4300D | 01.1994-12.1998 | |
VETUS | Engine | [M2.04] | |
VETUS | Engine | [M2.06] | |
VETUS | Engine | [M2.C5] | |
VETUS | Engine | [M2.D5] |
