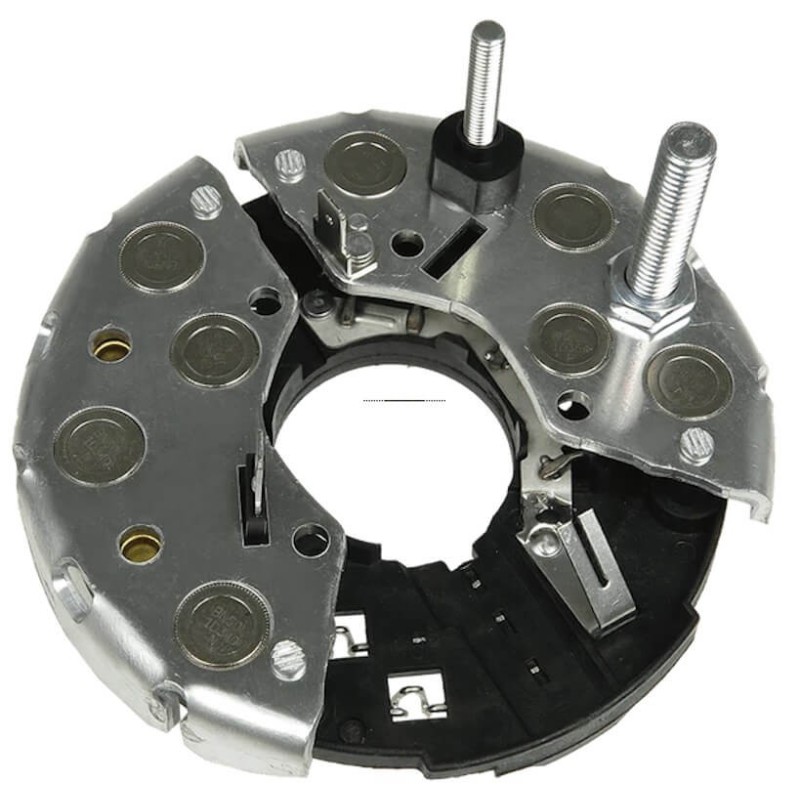

Gleichrichter für lichtmaschine BOSCH 0120484001 / 0120484002 / 0120484003
Gleichrichter / gleichrichter für lichtmaschine
= BOSCH 1127320692 / 1127320913
IHC, Navistar A187905
JOHN DEERE AL81451
KHD 132-1074
Mehr Infos
Elektrische Informationen | ||
|---|---|---|
| Diode A | 50 | |

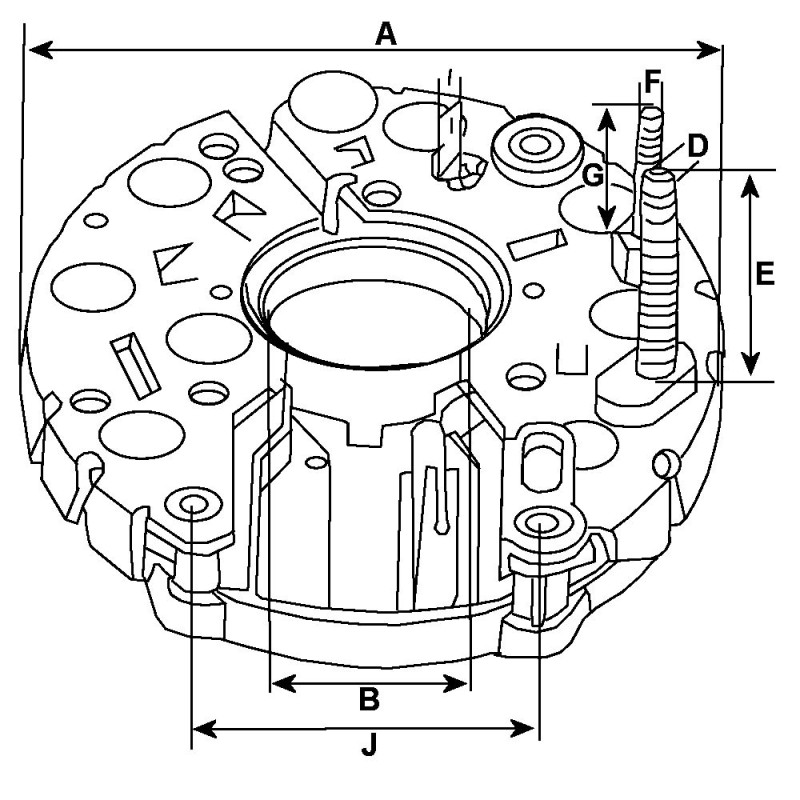

Physische Informationen | ||
|---|---|---|
| B+ type | Vis | |
| A | AD mm | 114.00 |
| B | ID mm | 35.70 |
| J | Montageabs. | 65.00 |
| D | B+/Thread | M8/30.00 |
| F | D+/Threaded | M5/25.00 |
| H | Thread W | 6.30 |
| Diodetyp | Avalanche | |
| Kondensator | Ohne | |
| Plug D+ | Vis | |
| Type W | Spade | |
| Number of Diodes | 8 | |
für lichtmaschine :
Agco Sisu Power C000 900 010 210, G198 902 011 010, G198902011010, G210 902 010 010, G210902010010
BOSCH 0120484001, 0120484002, 0120484003, 0120484011, 0120484012 , 0120484015, 0120484017, 0120484018 , 0120484019, 0120484020, 0120484021, 0120484022, 0120484024, 0120484025, 0120484026, 0120484027, 0120484 50, 9120060042
CUMMINS 3282554
DAF 1516466R
DEUTZ Motor Mfr 0117-8607, 01181250, 12270187, 12270612
FENDT G198902011010
FIAT 13010090006
JLG InduSpuren 7000872
JOHN DEERE AE53101, AH137883, AH165975, AL 60 033, AL 81 437, AL3846201, AL60033, AL67176, AL78689, AL78690, AL78692, AL81437, AL81438, AT220394, AZ38462, AZ3846201, RE36267, RE505895, SE501342, SE501343, TY24486, TY6750, TY6777, TY6778, TY6779, TY6779, TY6793
KHD 01177063, 117-7063, 117-8607, 1227-0612
Letrika (ISKRA) 11.201.875, 11.201.989, 11.203.268, 11.203.331, 11.203.332, 11.203.332
Letrika Old 11.203.451
MAGNETON 9-513-071, 9-513-071, 9-513-160, 9-513-160, 9-513-170, 9-515-180, 9-515-361, 9-515-361, 9-515-530; MAN 51-26101-7217
MWM Diesel 12270186, 12-270-612
NEW HOLLAND 86577814
PRESTOLITE 20110293
Zanotti S.P.A. 3ALT007
