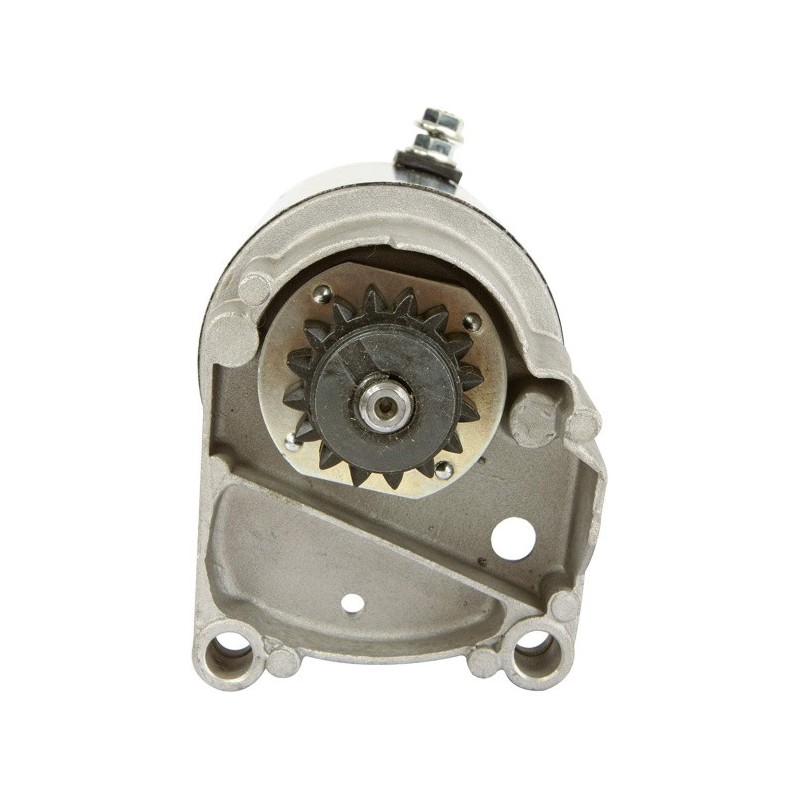

Motorino di avviamento sostituisce Briggs & Stratton 498148 / 495100 / 399928

Caratteristiche :

Voltaggio 12

KW 0.6

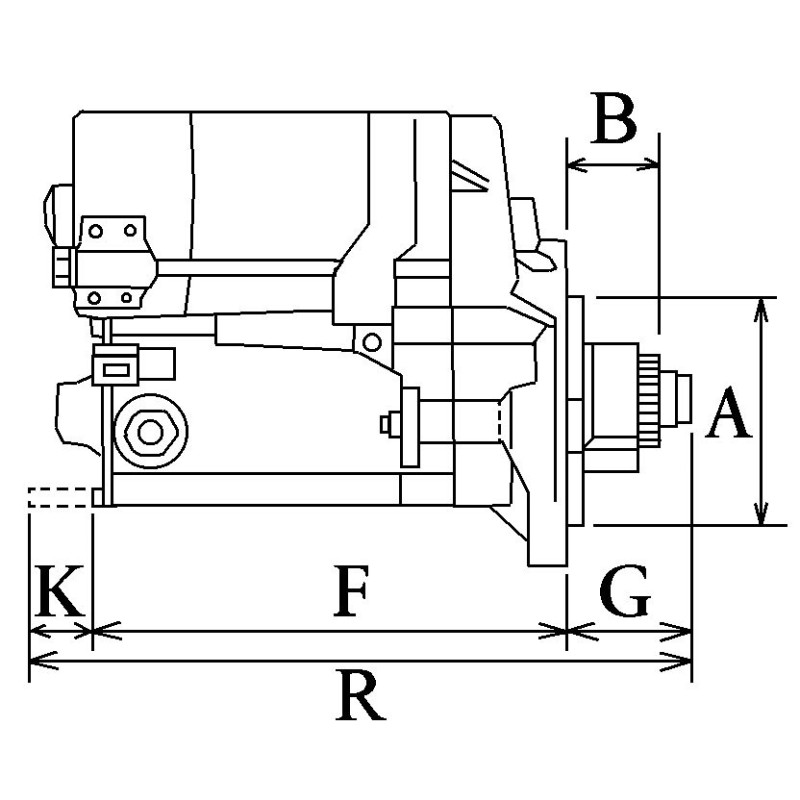

B = Distanza pignone 10.00

F = Distanza/posteriore 144.65

G = Distanza/anteriore 37.00

H = N° denti 16

B+ M6

Tipo ghiera Dd

O = Distanza mm 63.90

Rotazione Senso antiorario

N° fori di fissaggio 2 (0)

Tipo pignone Acciaio

R = Lunghezza totale mm 182.00

marchio generico

per il motore 422707


e il seguente modello

                                                       422707-0010-01, 422707-0010-02, 422707-0011-01, 422707-0011-02, 422707-0015-01, 422707-0015-02, 422707-0016-01, 422707-0030-01, 422707-0030-02, 422707-0031-01, 422707-0109-01, 422707-0111-01, 422707-0127-XX, 422707-0131-01, 422707-0131-02, 422707-0132-01, 422707-0132-02, 422707-0133-01, 422707-0134-01, 422707-0135-01, 422707-0136-01, 422707-0137-01, 422707-0138-01, 422707-0138-02, 422707-0139-01, 422707-0140-01, 422707-0141-01, 422707-0142-01, 422707-0143-XX, 422707-0144-01, 422707-0145-01, 422707-0146-01, 422707-0147-01, 422707-0148-01, 422707-0149-01, 422707-0150-01, 422707-0151-01, 422707-0152-01, 422707-0153-XX, 422707-0154-01, 422707-0155-XX, 422707-0156-01, 422707-0157-01, 422707-0158-01, 422707-0159-XX, 422707-0160-01, 422707-0161-01, 422707-0162-01, 422707-0163-01, 422707-0164-01, 422707-0165-01, 422707-0166-01, 422707-0167-XX, 422707-0179-01, 422707-1105-01, 422707-1106-01, 422707-1107-01, 422707-1115-01, 422707-1130-01, 422707-1131-01, 422707-1200-01, 422707-1202-01, 422707-1205-XX, 422707-1206-01, 422707-1207-01, 422707-1207-02, 422707-1208-01, 422707-1208-02, 422707-1209-01, 422707-1210-01, 422707-1211-01, 422707-1212-01, 422707-1213-01, 422707-1214-01, 422707-1216-01, 422707-1217-01, 422707-1219-01, 422707-1222-01, 422707-1225-01, 422707-1227-01, 422707-1228-01, 422707-1229-01, 422707-1229-02, 422707-1232-01, 422707-1233-01, 422707-1236-01, 422707-1236-02, 422707-1241-01, 422707-1242-01, 422707-1243-01, 422707-1245-XX, 422707-1247-XX, 422707-1251-01, 422707-1251-02, 422707-1252-XX, 422707-1253-01, 422707-1254-01, 422707-1255-XX, 422707-1256-01, 422707-1257-01, 422707-1258-01, 422707-1260-01, 422707-1261-01, 422707-1262-XX, 422707-1263-01, 422707-1264-01, 422707-1267-01, 422707-1275-01, 422707-1276-01, 422707-1277-01, 422707-1500-01, 422707-1502-01, 422707-1505-01, 422707-1506-XX, 422707-1507-01, 422707-1508-01, 422707-1509-01, 422707-1510-01, 422707-1511-01, 422707-1512-01, 422707-1513-01, 422707-1514-XX, 422707-1515-01, 422707-1516-01, 422707-1520-XX, 422707-1521-01, 422707-1522-01, 422707-1524-01, 422707-1525-01, 422707-1526-XX, 422707-1527-01, 422707-1529-01, 422707-1705-E1, 422707-1706-E1, 422707-1707-E1, 422707-2105-E1, 422707-2106-E1, 422707-2107-E1, 422707-2200-E1, 422707-2500-E1, 422707-4015-01, 422707-4015-02, 422707-4030-01, 422707-4031-XX, 422707-4032-XX, 422707-7001-XX
