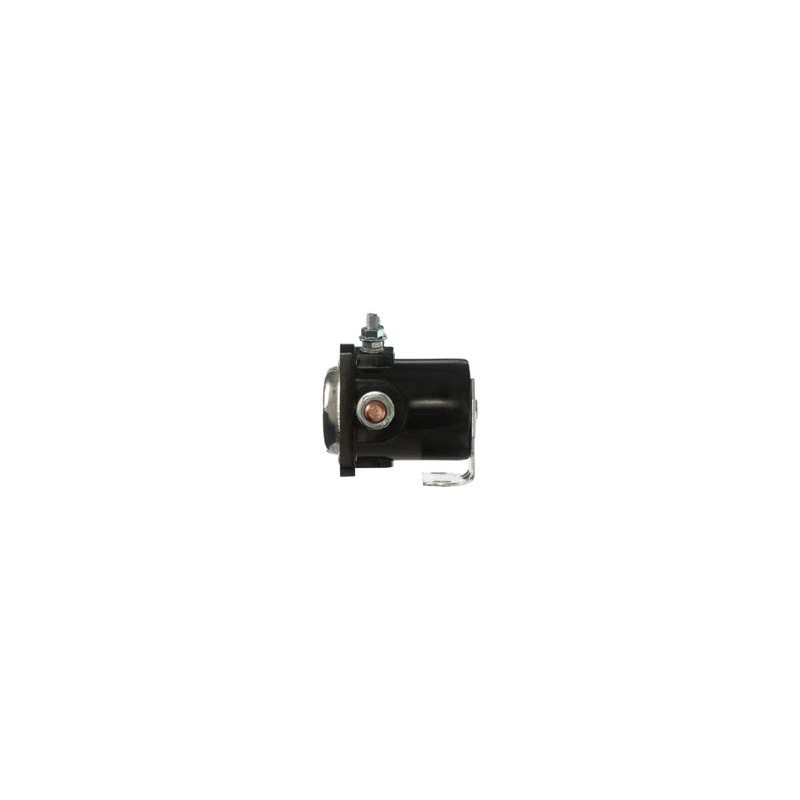

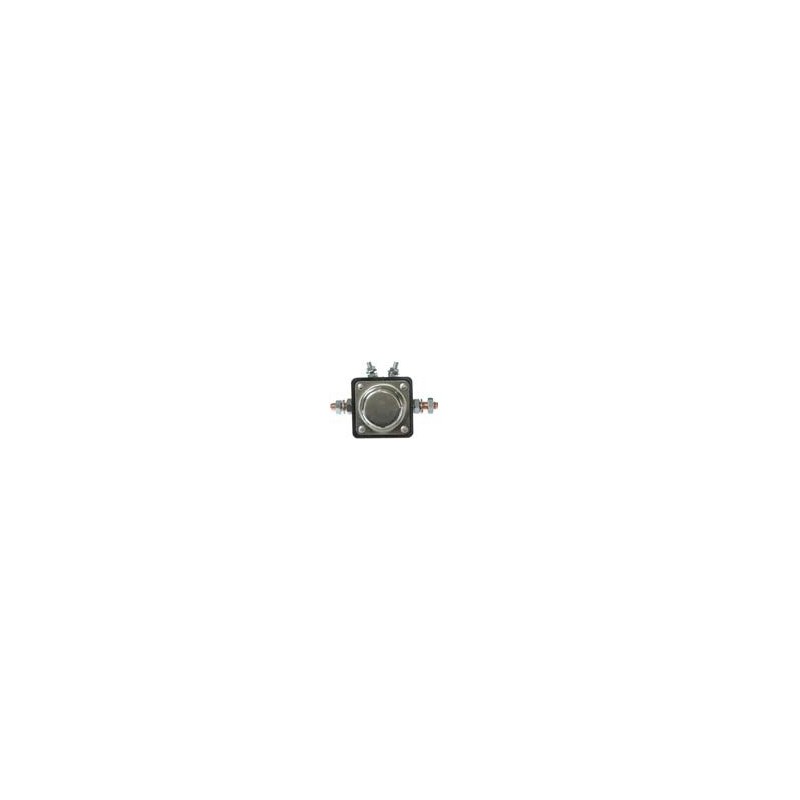

Relé sustituye Ford SW03 / D9AZ11450A / D2DZ11450A

Características :

Voltaje 12

Consummation momentaño 150 Amp.

A = DE mm 42.30

B = Longitud total mm 62.30

M = Perno de bobina 5/16" UNF

G = B+ 5/16" UNF

H = Altura/B+ 15.00

I = Kl. 15a/mm M5

K = Kl. 50/mm 10-32 UNF

N = Perno de bobina l. 15.00

J = Ancho/kl. 15a 12,75

L = Ancho/kl. 50 10.50

No. terminals 4

marca genérica

para

American Motors 3250028, 3250032; Chrysler 2700006, 3182772, 3182972, 3193382, 3212235, 3231371, 3231372, 3238665, 3242283, 3250028, 3250032, 5752791, 8982775001, 8982775012, JR775001, JR775012; Delco 10465474; Ford 2700006, 2900550, B4TZ-11002-A, B6A-11002A, B6A-11002A, B7TZ-11002-A, B9S-11002A, C0DF-11001-A, C0DF-11001-D, C1VF-11001-D, C2AF-11001-A, C2AF-11001-B, C2AF-11001-C, C2AF-11002-A, C2AF-11002-B, C2AF-11002-C, C2AZ-11001-A, C2AZ-11002-A, C2DF-11001-A, C2DF-11001-B, C2DF-11001-C, C2DF-11001-D, C2DF-11001-E, C2DF-11001-F, C2DF-11001-G, C2DF-11001-H, C2DZ-11002-A, C2DZ-11002-B, C2OF-11001-A, C2OF-11001-B, C2OF-11001-C, C2OF-11001-D, C2OF-11001-E, C2OZ-11002-A, C2OZ-11002-B, C2SF-11001-A, C2SF-11001-B, C2SF-11001-C, C2SF-11002-B, C2SF-11002-C, C2SZ-11001-A, C2SZ-11002-A, C2VF-11001-C, C2VY-11002-A, C3AF-11001-A, C3AF-11002-A, C3DF-11001-A, C3DF-11001-B, C3DF-11001-D, C3NF-11002-A, C3NF-11002-E, C3NF-11002-E, C3OF-11001-A, C3OF-11001-B, C3OZ-11002-A, C3OZ-11002-C, C3SF-11001-A, C3VF-11001-A, C4DF-11001-A, C4DF-11001-B, C4OF-11001-A, C4OF-11001-B, C4TF-11001-A, C4TF-11001-B, C4TZ-11002-B, C4VF-11001-A, C4ZF-11001-A, C5AF-11001-A, C5TF-11001-A, C5TF-11001-B, C5TZ-11002-A, C5TZ-11002-D, C6AF-11001-A, C6AZ-11002-A, C6FF-11001-B, C6FF-11001-D, C6OF-11001-A, C6OZ-11002-A, C6OZ-11102-A, C6VF-11001-A, C6VF-11002-A, C6VY-11002-A, C6VY-11002-B, C7AF-11001-A, C7AF-11001-B, C7AF-11001-C, C7AF-11001-E, C7AF-11001-F, C7FF-11001-B, C7OF-11001-A, C7TF-11001-A, C7VF-11001-A, C8AF-11001-A, C8AZ-11002-A, C9AF-11001-B, C9FF-11001-A, C9FF-11001-B, C9ZF-11001-A, D0AF-11001-A, D0AF-11001-B, D0AF-11001-C, D0AF-11001-E, D0FF-11001-B, D0FF-11001-C, D0OF-11001-A, D0TF-11001-A, D0ZF-11001-A, D0ZF-11001-B, D12F-11001-AA, D1AF-11001-AA, D1AF-11002-A, D1AZ-11001-A, D1AZ-11002-A, D1FF-11001-AA, D1FZ-11002-A, D22F-11001-AA, D22F-11001-AB, D22F-11001-AD, D2AF-11001-AA, D2AF-11001-BA, D2AF-11001-CA, D2AF-11001-DA, D2AF-11001-HA, D2AF-11001-JA, D2FZ-11002-A, D2HF-11001-E, D2HF-11001-EA, D2OF-11001-AA, D2OF-11001-BA, D2TF-11001-AA, D2TF-11001-BA, D2ZF-11001-AA, D2ZF-11001-BA, D2ZF-11001-CA, D32F-11001-AA, D42F-11001-AA, D42F-11001-AB, D42F-11001-BA, D4FZ-11002-B, D4OZ-11002-A, D4TZ-11002-D, D4ZF-11001-AB, D4ZF-11001-BA, D4ZZ-11002-A, D5AF-11001-EA, D5AZ-11002-C, D5FF-11001-AA, D5OF-11001-AA, D5OF-11001-BA, D5TF-11001-AA, D5TF-11001-DA, D6BF-11001-AA, D6BF-11001-BA, D6DZ-11002-A, D6DZ-11002-B, D6EF-11001-AA, D6EF-11001-BA, D6FF-11001-AA, D6FF-11001-BA, D6FZ-11002-A, D6FZ-11002-B, D6OF-11001-AA, D6OZ-11002-A, D6TF-11001-AA, D6TF-11001-BA, D6TF-11001-DA, D6TF-11001-EA, D6TZ-11002-A, D6TZ-11002-B, D6TZ-11002-D, D70Z-11002-A, D7AZ-11002-A, D7AZ-11002-B, D7DZ-11001-BA, D7DZ-11002-A, D7DZ-11002-B, D7FZ-11002-A, D7HZ-11002-A, D7OZ-11002-A, D7OZ-11002-B, D7TZ-11002-A, D7ZZ-11002-A, D8AF-11001-AA, D8AF-11001-BA, D8BF-11001-AA, D8BF-11001-BA, D8BF-11001-CA, D8BZ-11002-A, D8EF-11001-AA, D8FF-11001-AA, D8FF-11001-BA, D8FF-11001-CA, D8FF-11001-DA, D8FZ-11002-A, D8FZ-11002-B, D8HF-11001-AA, D8OF-11001-AA, D8TF-11001-AA, D8ZF-11001-AA, D9HT-11001-AA, D9HZ-11002-A, E12F-11001-AA, E1AF-11001-BA, E1AZ-11002-B, E1AZ-11002-BRM, E1BF-11001-AA, E1BZ-11002-A, E1EF-11001-AC, E1EF-11001-AD, E1FF-11001-BA, E1FZ-11002-A, E1FZ-11002-B, E1HF-11001-AA, E1HZ-11002-A, E1HZ-11002-ARM, E1PZ-11002-A, E1TF-11001-AA, E1TF-11001-BA, E1TF-11001-CA, E1TZ-11002-A, E1TZ-11002-B, E1TZ-11002-C, E1TZ-11002-CRM, E1ZF-11001-AA, E1ZF-11001-AB, E1ZZ-11002-A, E1ZZ-11002-B, E25F-11001-AA, E25Y-11002-A, E25Y-11002-A, E25Z-11002-A, E25Z-11002-A, E2AF-11001-DA, E2BF-11001-AA, E2BZ-11002-A, E2EF-11001-AA, E2FZ-11001-AA, E2FZ-11002-A, E2PF-11001-BA, E2PF-11001-CA, E2PZ-11002-A, E2SF-11001-AA, E2SZ-11002-A, E2TF-11001-AA, E2TZ-11002-A, E3AF-11001-AA, E3AZ-11002-A, E3AZ-11002-A, E3EF-11001-AA, E3FZ-11002-A, E3TF-11001-AA, E3TZ-11002-E, E3TZ-11002-ERM, E43F-11001-AA, E43Z-11002-A, E47F-11001-AA, E4AF-11001-AA, E4DF-11001-BA, E4DZ-11002-B, E4DZ-11002-BRM, E4EF-11001-BA, E4TF-11001-AA, E4TZ-11002-A, E4TZ-11002-ARM
