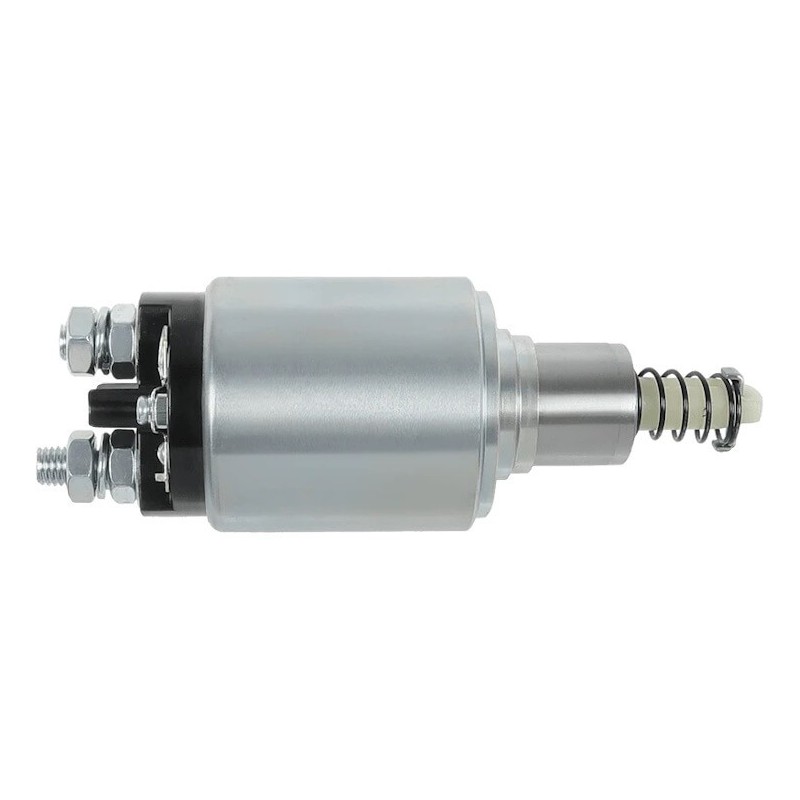

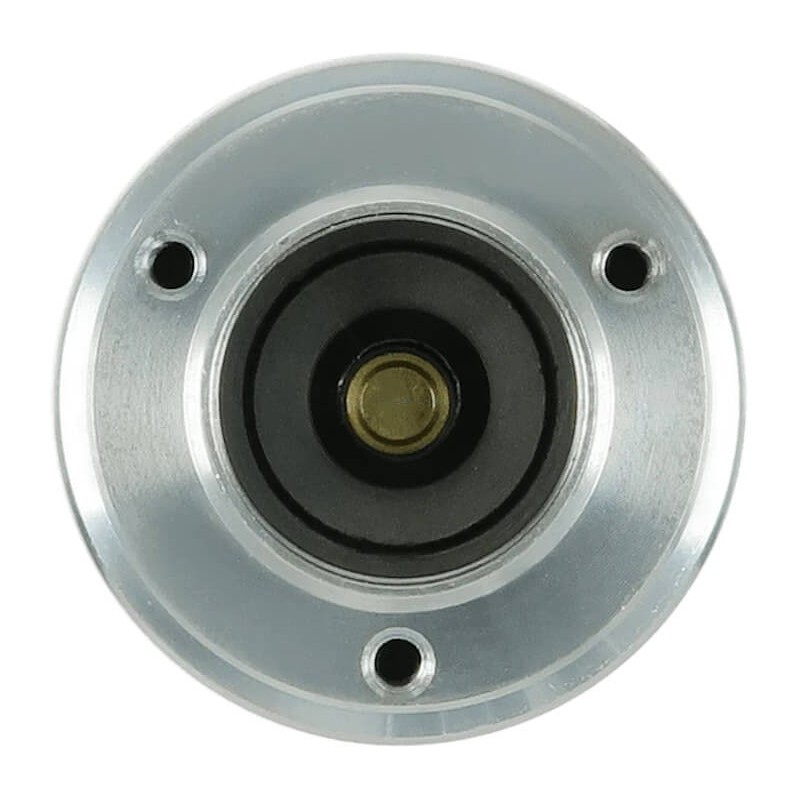

Solenoide para motor de arranque 0001360027 / 0001368016 / 0001368019 / 0001368020

Características :

Voltaje 24

A = DE mm 61.00

B = Longitud total mm 161.85

M Perno de bobina M10

D = DE/capó mm 53.35

E = DI capó mm 29.80

G B+ M10

H = Altura/B+ 21.90

K = Kl. 50/mm 4.70

N Perno de bobina l. 15.75

L = Ancho/kl. 50 3.70

No. terminals 3

marca adaptable

para motor de arranque Bosch:

0001360027 / 0001368016 / 0001368019 / 0001368020 / 0001368021 / 0001368037 / 0001368038 / 0001368056 / 0001368059

0001368063 / 0001368069, 0001368070, 0001368071, 0001368074, 0001368081, 0001368082, 0001368083, 0001368085, 0001368086, 0001368301, 0001368305, 0001368311, 0001368319, 0001368320, 0001816220, 9000083065, F000AL0157

Case 2997760, 2997760R, A186142, A187597, E41565, E41565EX, P941519Q, Q 941519; Caterpillar 1092361, OR1903; Cummins P941519Q; DAF 1201327, 1368083, 1516694R, 1516698R, 1516716R, 1516759R, 1516759R, 1516760R, 1516768R, 1516825R, 249915, 262046, 653721, AELB426, AELB737; Delco 19024233, 19024274

Deutz Engine Mfr 1164995, 1173241, 3043990, B29R24X4H7622; Faun 1701065; Fendt F 524 900 060 050, F 524 900 060 050, F 926 900 060 041, F 926 900 060 041, V 835 330 965; Fiat 4231018, 4231018, 4269114, 4682999, 4682999, 4691200, 4692477, 4706008, 4706720, 4706931, 4716026, 4716062, 4737756, 4744841, 4755108, 4755111, 4755113, 77040561, 77050262, 77050561, 77050562, 77065560, 77080560, 77080561, 77097430, 77130560, 7740560, 77414430, 77414431, 77444430, 77445430, 8862534, 8961386, 8962534, 8962534, 929162

Hanomag Massey Ferguson 2873306; Hatz 40098900, 401 014 00, 501 953 00, 501 954 00, 50195400; IHC, Natornillotar 787804R92; Iveco 1363111, 1368020, 1368082, 154011053, 4231018, 4231018, 42522641, 4269114, 4682999, 4682999, 4716026, 4744811, 4744841, 4755108, 4755111, 4854185, 504038038, 504072485, 77080560, 7740560, 77414431, 77445430

KHD 116-4995, 117-3241, 1215-3836, 12153819, 12153838, 468-2999; Lyrika (Iskra) 11.131.353, 11.132.189; Lyrika (Iskra) Tech. AZF4106, AZF4327, AZF4327, AZF4508, AZF4509, AZF4509, AZJ 3351, AZJ 3351, AZJ 3351, AZJ3113, AZJ3132, AZJ3132, AZJ3133, AZJ3133, AZJ3160, AZJ3172, AZJ3186, AZJ3188, AZJ3188, AZJ3231, AZJ3231, AZJ3231, AZJ3263, AZJ3263, AZJ3263, AZJ3374, AZJ3375, AZJ3387, AZJ3388, AZJ3413, AZJ3542, AZJ3593, AZJ3593; Lyrika Old 11.130.595, 11.131.085, 11.131.143, 11.131.144, IS 0595, IS 0595; Liebherr 600-07-34, 620-06-62; Lucas 27 305
