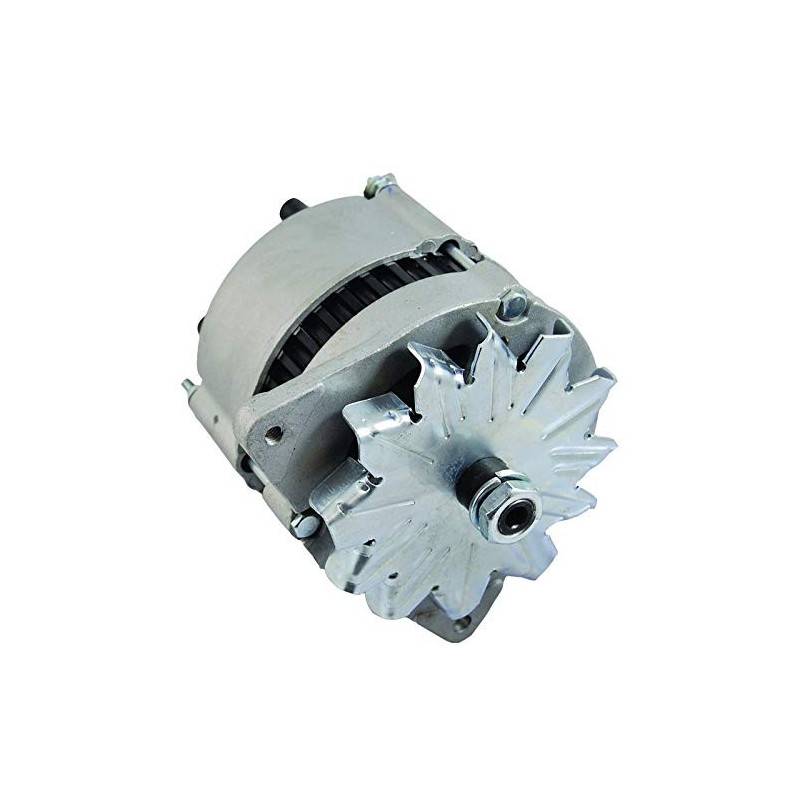

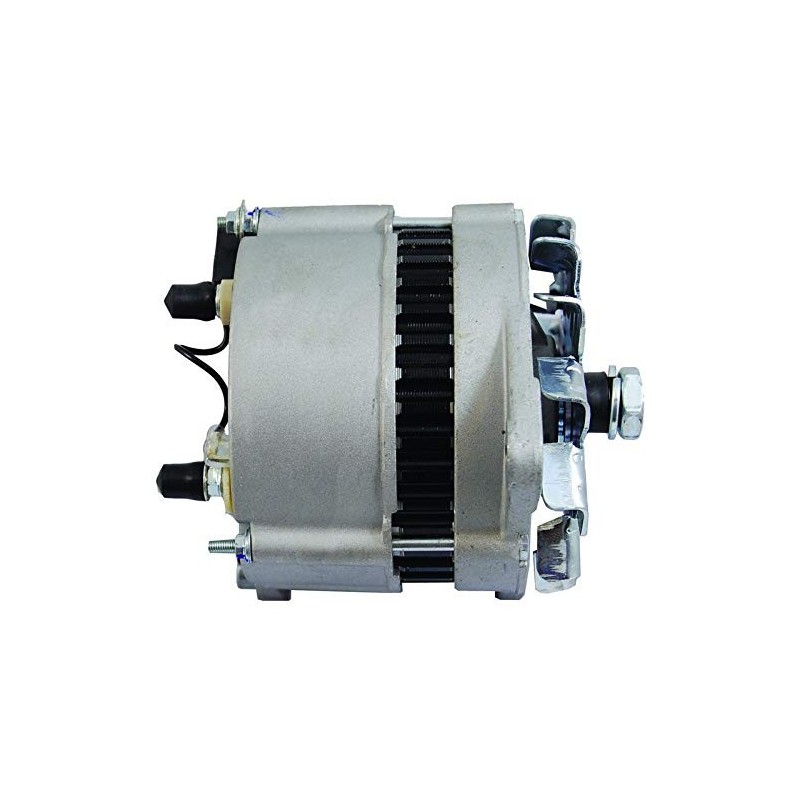

Alternador sustituye 3611-931-M91 / 3612-670-M91 / 3477851M91

Características :

Rotación Cr

Amp 70

Voltaje 14

Terminal W

D = Diámyro del orificio 8.40

G = Diámyro del orificio de la pata M8

B = Ancho de los brazos 11.00

E = Ángulo de la pasta tensora 50

C = Distancia entre soportes 81.00

H = Polea diámyro. 64.00

A = Dist. polea 34.50

Ranuras de la polea 1

J = Radius 86.00

J = Radius 85.00

Posición B + Toma

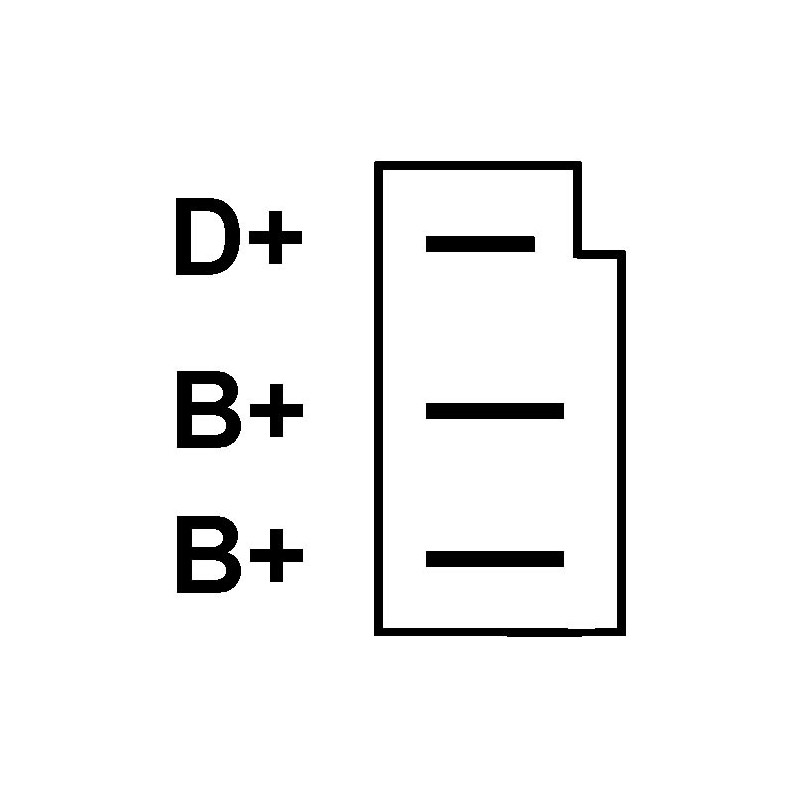

Conector regulador PL22

Ventilador Ef

Polea Polea

R = Longitud total mm 165.50

marca wai

= referencia:

Agco Sisu Power 3930501R91, 3933143M91, 83632800, Bya Marine 200-01155, Case 92281C1, 92292C1, K311696, K311697, K311698, Cummins 3907749, Ford 5023530, 76BB10300CA, 83AB10300AC, 86AB10300EB, IHC, Natornillotar 92281C1, JCB 714/01003, 714/10800, 714/40148, 714/40476

Land Rover ADU9052, PRC6366, Landini 3477851M91, Lyrika (Iskra) 11.201.566, 11.201.728

Lucas 23833A, 23862A, 23996, 23996A, 23996A/D, 24209, 24209A/B, 24215, 24215A, 24242, 24242A, 24245, 24245A, 24291, 24291A, 24294, 24294A, 24294B, 24298, 24327, 24327A, 54022147A, 54022160D, 54022195, 54022206, 54022220, 54022225, 54022225A, 54022241, 54022241B, 54022243, 54022243A, 54022257, 54022264A, 54022381, 54022382, 54022383, 54022383A, 54022391, 54022395, 54022398, 54022398B, 54022408, 54022408A, 54022428, 54022431, 54022437A, 54022446, 54022447, 54022467, 54022529B, 54022536, 54022621, 54022639, NAB415

Magneton 9-515-030, 9-515-031, 9-515-734, 9-516-701, 9-516-709, 9-516-742, Marelli 063324157010, 063324199010, 063324294010, 54022752, 63324199, 63324245, 63324294, 63324327, 943356312, MAN107, MAN131, MAN151, MAN153, MAN163, MAR387

Maruti Suzuki 1447701R91, 1897695R91, 3478360M91, 3611576M91, 3611931M91, 3630501R91

Massey Ferguson 144-7701-R91, 3478-360-M91, 3478-360-R91, 3536-264-M91, 3559-9503-M91, 3559-9504-M91, 3582-821-R1, 3611-576-M91, 3611-577-M91, 3611-931-M91, 3612-670-M91, 3615-942-R1, 3698-016-M91, 3701-910-M91, 3701-912-M91, 3819-359-M91, 3930504R91

New Holland 9821931, Perkins Engine 1475922N91, Prestolite 66021136, 66021636, Rover YLE10020, Valeo 433415, 436182, 436692, Valtra 50273

montaje en:

Agco Allis (1998-2000) , Agco White (1998-2000) , Austin - Europe (1984-1992) , Case (1980-2009) , Ford - Europe (1980-1996) , J.C. Bamford (1980-1994) , Jaguar - Europe (1975-1986) , Land Rover - Europe (1984-1998) , Leyland DAF Vans - Europe (1986-1996) , Lister-Pyter (1986-1988)

Massey Ferguson (1979-2009) , MG - Europe (1984-1990) , New Holland Industrial (1994-1999) , Reliant - Europe (1985-1995) , Rover Group (Austin/Morris) - Europe (1982-1984) , Rover Group - Europe (1983-1997) , Valtra Valmy (2008-2010)

SIN DEPÓSITO NI DEVOLUCIÓN DEL ARTÍCULO ANTIGUO
GARANTÍA DE 2 AÑOS
