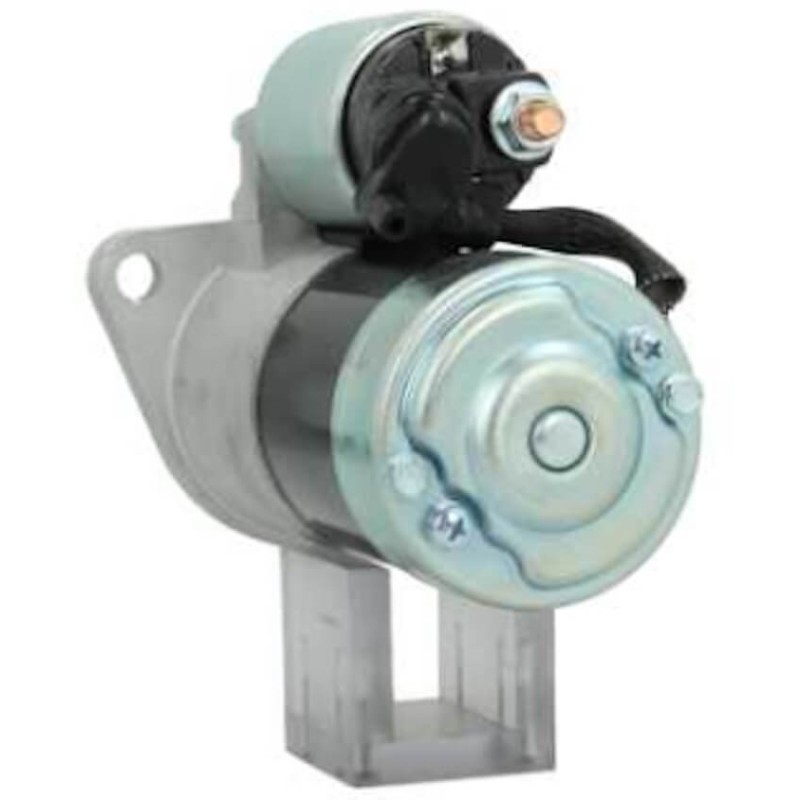

Starter replacing HITACHI S114-194 / S114-134 for YANMAR
Starter for engine YANMAR
including YSE8G
= HITACHI S114-194 / S114-134
= YANMAR 104211-77010 / 104211-77011 / 114211-77010
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 12
KW 1.0
A = Mount flange 82.00
B = Drive distance 7.00
F = Distance / Back 161.50
G = Distance / Front 42.00
H = Nbr of teeth 9
B+ M8
Gear type Dd/gr
O = Distance 110.00
Rotation Cr
Nbr of mounting holes 2 (0)
Drive Tipo Steel
R = Total length mm 206.50
Info Not oilproof.
generic brand
= HITACHI S114-194 / S114-134
= YANMAR 104211-77010 / 104211-77011 / 114211-77010
could be used on
| Model | year | brand | engine |
| PA | 0 | YANMAR | |
| PA | 75 | YANMAR | Any |
| PC | 0 | YANMAR | |
| PC | 75 | YANMAR | Any |
| SB12 | 1976 | YANMAR | 1cyl 0.510L Diesel |
| SB12 | 1977 | YANMAR | 1cyl 0.510L Diesel |
| SB12 | 1978 | YANMAR | 1cyl 0.510L Diesel |
| SB12 | 1979 | YANMAR | 1cyl 0.510L Diesel |
| SB12 | 1980 | YANMAR | 1cyl 0.510L Diesel |
| SB8 | 1976 | YANMAR | 1cyl 0.331L Diesel |
| SB8 | 1977 | YANMAR | 1cyl 0.331L Diesel |
| SB8 | 1978 | YANMAR | 1cyl 0.331L Diesel |
| SB8 | 1979 | YANMAR | 1cyl 0.331L Diesel |
| SB8 | 1980 | YANMAR | 1cyl 0.331L Diesel |
| SVE12 | 1974 | YANMAR | 1cyl 0.510L Diesel |
| SVE12 | 1975 | YANMAR | 1cyl 0.510L Diesel |
| SVE12 | 1976 | YANMAR | 1cyl 0.510L Diesel |
| SVE8 | 1974 | YANMAR | 1cyl 0.331L Diesel |
| SVE8 | 1975 | YANMAR | 1cyl 0.331L Diesel |
| SVE8 | 1976 | YANMAR | 1cyl 0.331L Diesel |
| YA | 0 | YANMAR | |
| YA | 75 | YANMAR | Any |
| YC | 0 | YANMAR | |
| YC | 71 | YANMAR | All |
| YC | 75 | YANMAR | Any |
| YSB12 | 1976 | YANMAR | 1cyl 0.510L Diesel |
| YSB12 | 1977 | YANMAR | 1cyl 0.510L Diesel |
| YSB8 | 1976 | YANMAR | 1cyl 0.331L Diesel |
| YSB8 | 1977 | YANMAR | 1cyl 0.331L Diesel |
| YSE12 | 1974 | YANMAR | 1cyl 0.510L Diesel |
| YSE12 | 1975 | YANMAR | 1cyl 0.510L Diesel |
| YSE12 | 1976 | YANMAR | 1cyl 0.510L Diesel |
| YSE8 | 1974 | YANMAR | 1cyl 0.331L Diesel |
| YSE8 | 1975 | YANMAR | 1cyl 0.331L Diesel |
| YSE8 | 1976 | YANMAR | 1cyl 0.331L Diesel |
| YSM12 | 1977 | YANMAR | 1cyl 0.510L Diesel |
| YSM12 | 1978 | YANMAR | 1cyl 0.510L Diesel |
| YSM12 | 1979 | YANMAR | 1cyl 0.510L Diesel |
| YSM12 | 1980 | YANMAR | 1cyl 0.510L Diesel |
| YSM8 | 1977 | YANMAR | 1cyl 0.331L Diesel |
| YSM8 | 1978 | YANMAR | 1cyl 0.331L Diesel |
| YSM8 | 1979 | YANMAR | 1cyl 0.331L Diesel |
| YSM8 | 1980 | YANMAR | 1cyl 0.331L Diesel |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
- For further information on the nature of the review controls, as well as the possibility of contacting the author of the review please consult our Transparency Charter.
- No inducements have been provided for these reviews
- Reviews are published and kept for a period of five years
- Reviews can not be modified: If a customer wishes to modify their review then they can do so by contacting Verified Reviews directly to remove the existing review and publish an amended one
- The reasons for deletion of reviews are available here.
Gilles A. published the 22/05/2023 following an order made on 16/05/2023
Parfait et la même référence 40 ans plus tard, très bien.
Anonymous customer published the 06/09/2022 following an order made on 29/08/2022
The starter works ok, as it starts the engine, but it sounds awful and it requires 1–1,5 sec to start, whereas the original kicked the engine running practically instantly. Otherwise this seems to be a decent starter.
Anonymous customer published the 29/05/2022 following an order made on 13/05/2022
commandé livre en temps et en heure
Anonymous customer published the 01/05/2022 following an order made on 15/04/2022
Correspond à sa présentation.
Anonymous customer published the 09/10/2021 following an order made on 22/09/2021
bon rapport qualité/prix. seul le temps pourra certifier cet avis.
