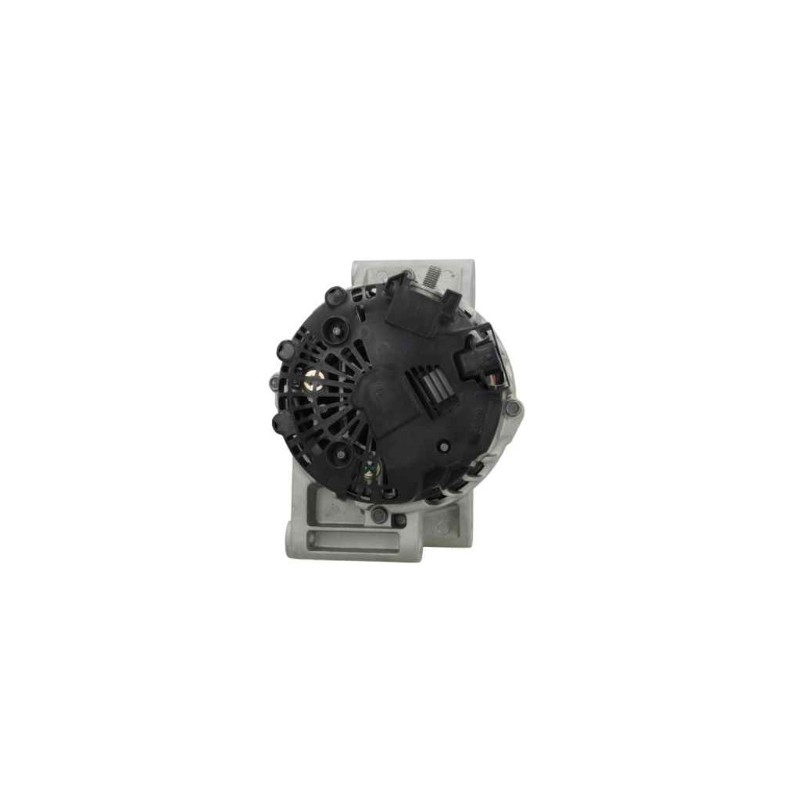

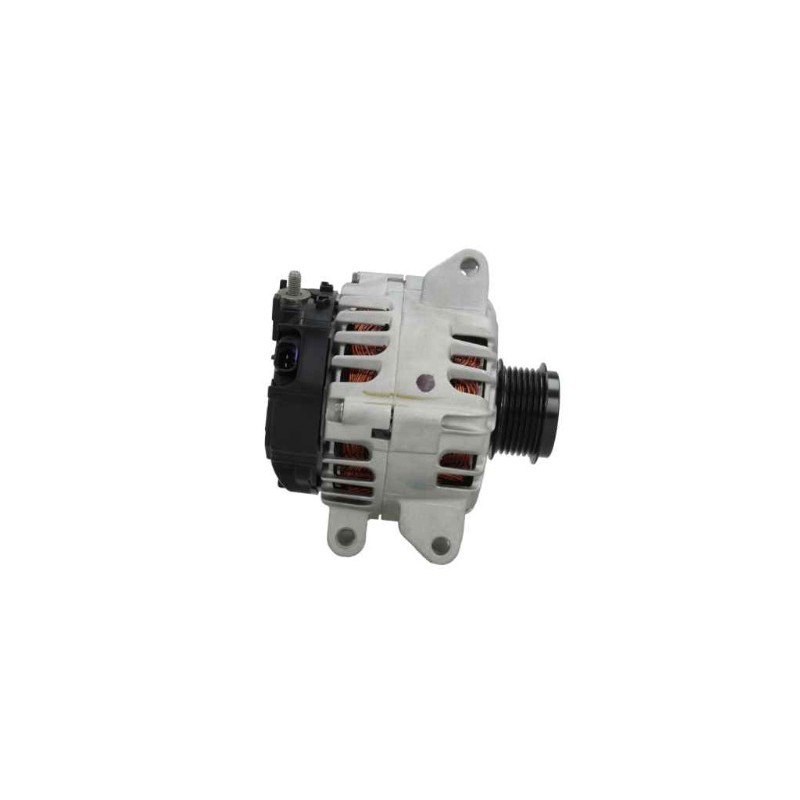

Alternator replacing VALEO TG12C065 / 2605326A / OPEL 1204651 / 13500332
Alternator NEW replacing VALEO TG12C065 / 2605326A
OPEL 1204651 / 13500332
DRA1043 / LRA03961
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
generic brand
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 140 | |
Generic brand
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 79.00 |
| C | Mount. bracket dist | 56.00 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 32.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 81.50 |
| j | Radius 2 | 81.50 |
| k | Position B + | M8 |
| n | Rotation | CW |

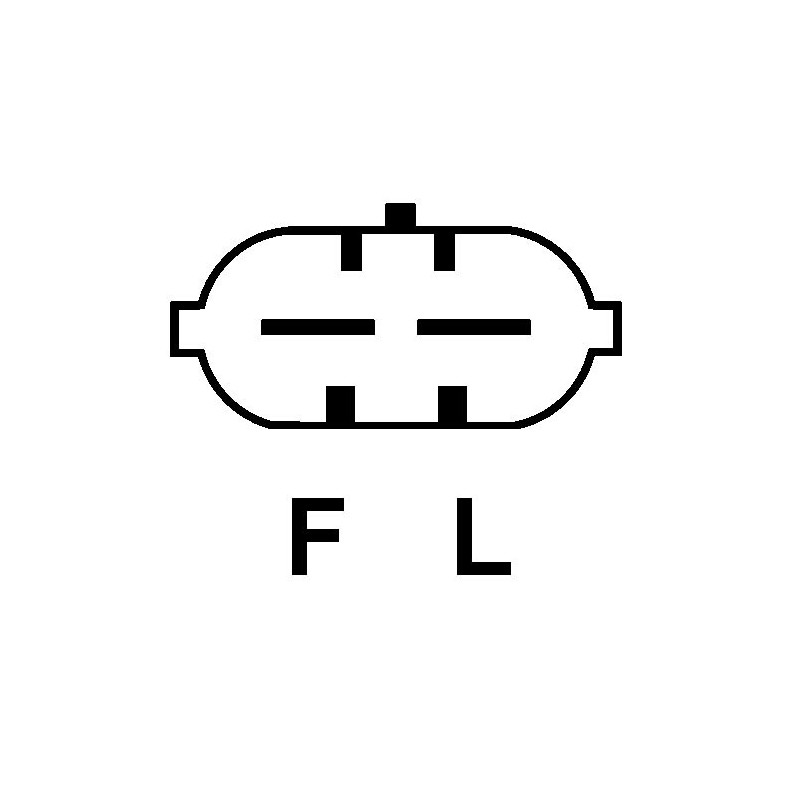

| o | Plug no. 1 | PL180 |
| R | Total length mm | 173.00 |
Replacing | |
|---|---|
| 1204651 | OPEL |
| 13500332 | OPEL |
| 2605326A | VALEO |
| TG12C065 | VALEO |
Mounted on :
| CHEVROLET | Captiva | Captiva 2.4 4WD | /11 | |
| CHEVROLET | Captiva | Captiva 2.4 | /11 | |
| CHEVROLET | Malibu | 2.4 V300 | /11 | |
| OPEL | Antara | 2.4 | /10 | |
| OPEL | Antara | 2.4 4WD | /10 | |
| OPEL | Astra J | 2.0 GTC | /12 | |
| OPEL | Insignia | 2.0 Turbo G09 | /11 | |
| OPEL | Insignia | 2.0 Turbo 4x4 G09 | /11 | |
| SAAB | 9-3 | II 2.0t YS3F | /11 | /11 |
| SAAB | 9-3 | II 2.0t XWD YS3F | /11 | /11 |
| SAAB | 9-3 | X 2.0t XWD | /11 | /12 |
| SAAB | 9-5 | II 2.0t YS3G | /10 | /12 |
| SAAB | 9-5 | II 2.0t XWD | /10 | /12 |
