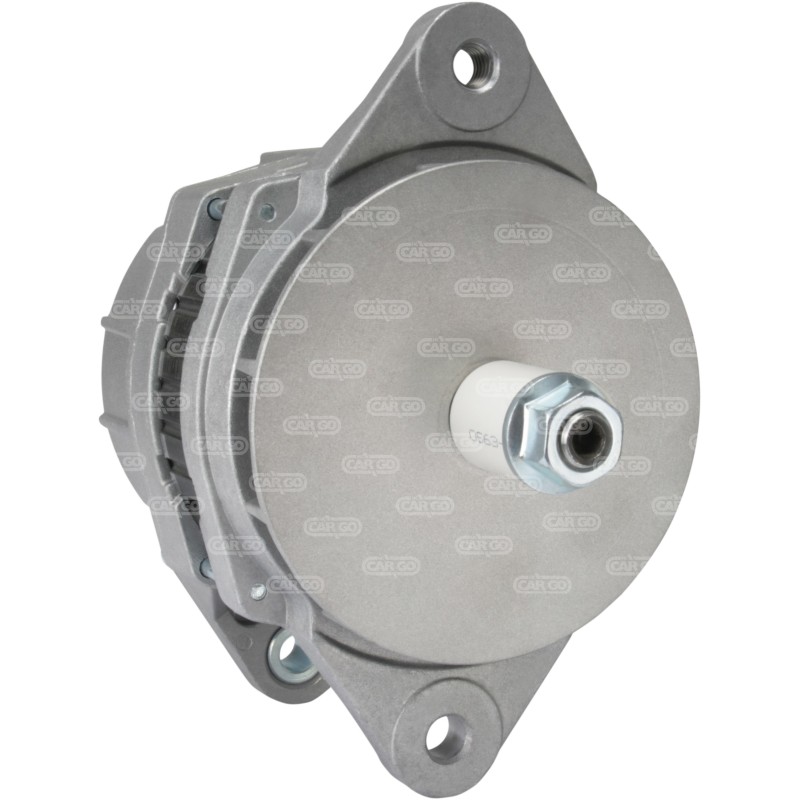

Alternator NEW replacing DELCO REMY 19010166 / 19010163 / 19010162

Information:

Voltage 14

Amp 130

Plug type W

D = Bracket hole 13.10

G = Belt. adj. bracket hole 1/2" UNC

B = Width/holder arm 14.20

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 101.50

J = Radius 98.00

J = Radius 98.00

Position B + 1/4" UNF

Rotation CR/ACR

Plug no. 1 PL_NA

Fan Ef

Pulley Without

Remarks Replacing: 21SI.

Masse nég. Un système from fil. B+1/4".

R = Total length mm 217.00

Info Shaft is 7/8 In = 22.255 mm

= CUMMINS 3604666rx / 3918558

= DELCO REMY 19010166 / 19010163 / 19010162 / 19010161 / 19010160 / 19010159 / 19010158
19010157 / 19010154 / 19010137 / 19010136 / 19010120 / 1117962 / 1117959

1117958 / 1117957 / 1117914 / 1117889

= International Harvester 1677974c91 / 1677974c92 / 1680859c91 / 1680859c92

= FORD GL358 / GL332 / GL-358 / GL-332 / F8ZU10300AA / F5HZ10346A / F4PU10346BA
F4HT10300KA / F4HT10300FA / F4HT10300EA / F4HT10300DA / F3HZ10346H

F3HT10300HB / F3HT10300CA / F3HT10300BA / F3HT10300AA

                                    NO CORE EXCHANGE NEEDED

                                                         TWO YEARS WARRANTY
