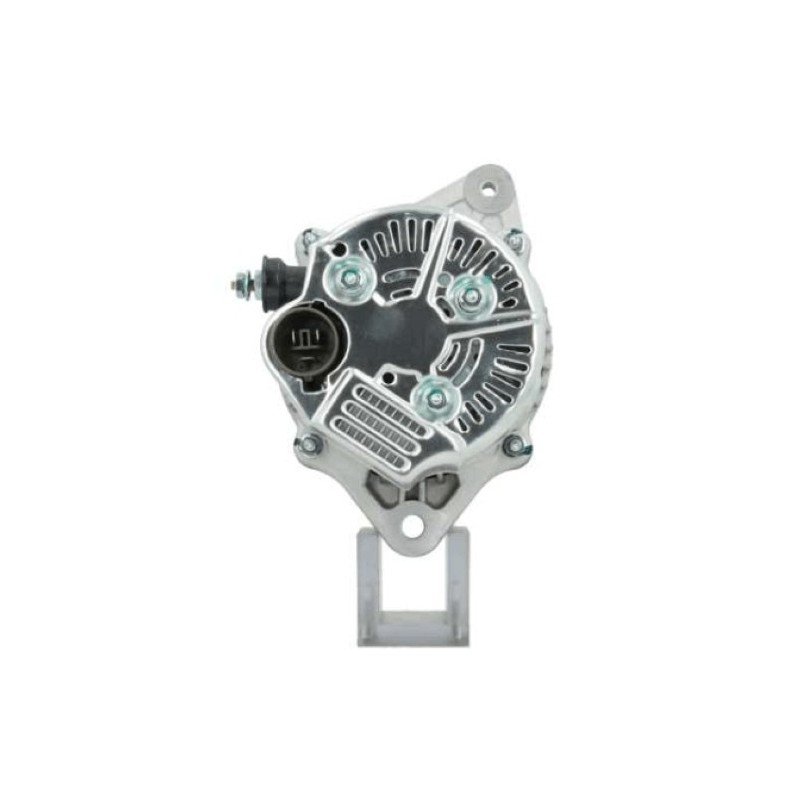

Alternator replacing DENSO 100211-3630 / 100211-3221 / 100211-3220 / 100211-3130
Alternator for CHEVROLET, GEO, TOYOTA
Delco 10463267, 10479805, Denso 100211-3352, 100211-3630, 100211-7000, 100211-7050, 100211-8480, GM 10463267, 94847129, 94849284, Toyota 27060-02020, 27060-16122, 27060-16122-84, 27060-16140, 27060-16160, 27060-16160-84, 27060-16170, 27060-16170-84, 27060-16270, Valeo 436541
NO CORE EXCHANGE NEEDED
More info
Information:
Voltage 14
Amp 55
D = Bracket hole 10.30
G = Belt. adj. bracket hole 2 M8
B = Width/holder arm 58.00
E = Belt. adj. brackethole pos. 5
H = Pulley dia. 58.00
A = Pulley dist. 89.65
Grooves/pulley 5
J = Radius81.30
J = Radius 81.75
B+ position M6

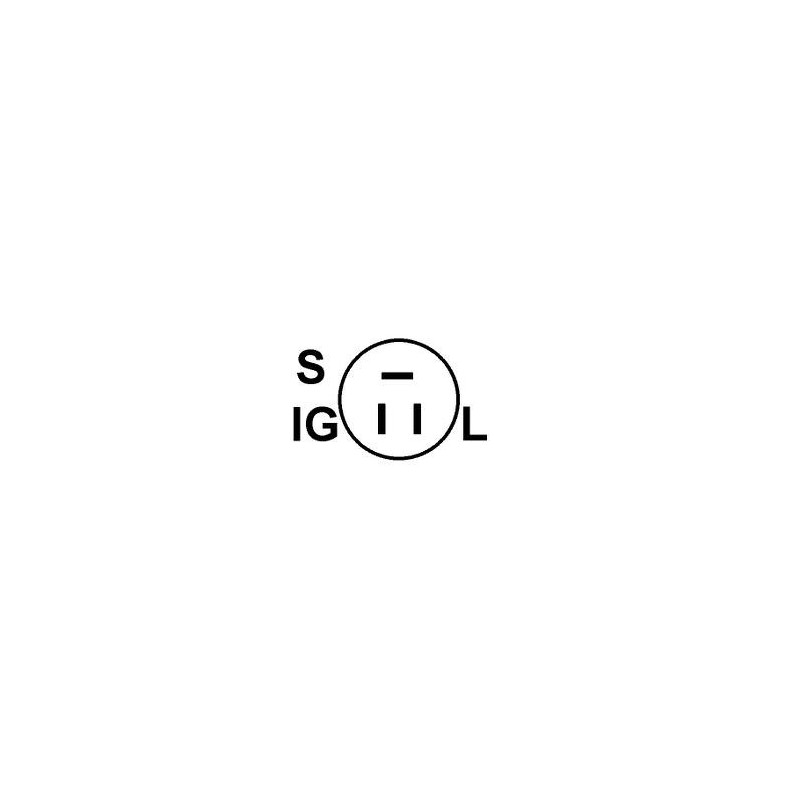

Plug no. 1 PL12
Fan If
generic brand
= DENSO 100211-3630 / 100211-3221 / 100211-3220 100211-3130 / 100211-2380 / 100211-2370 / 100211-2170
= TOYOTA 27060-02020 / 27060-11030 / 27060-11030-R 27060-11060 / 27060-11120 / 27060-11200 / 27060-13080 27060-16180 / 27060-16180-R / 27060-16230
