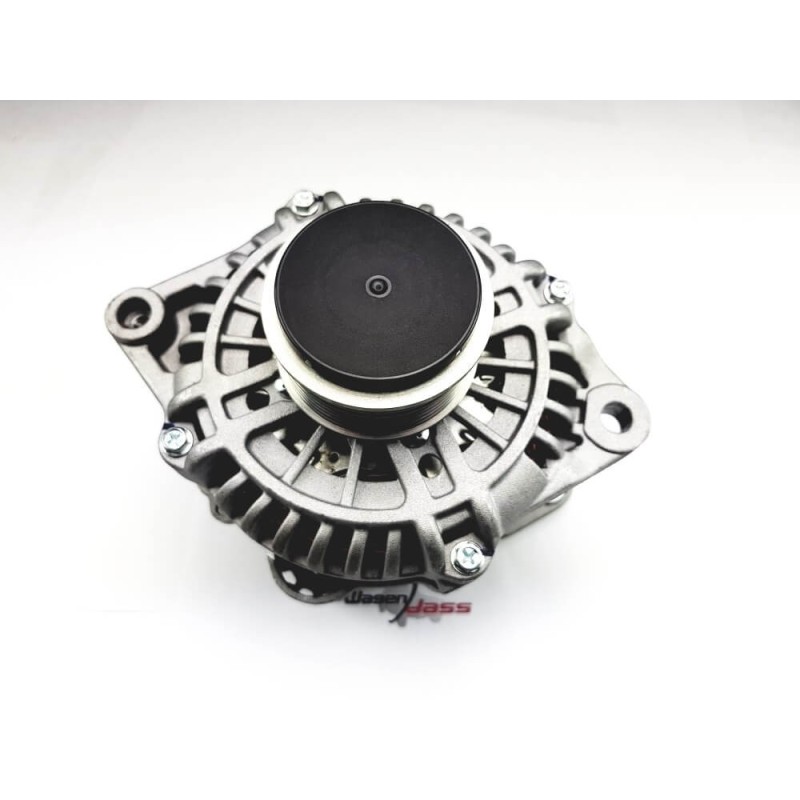

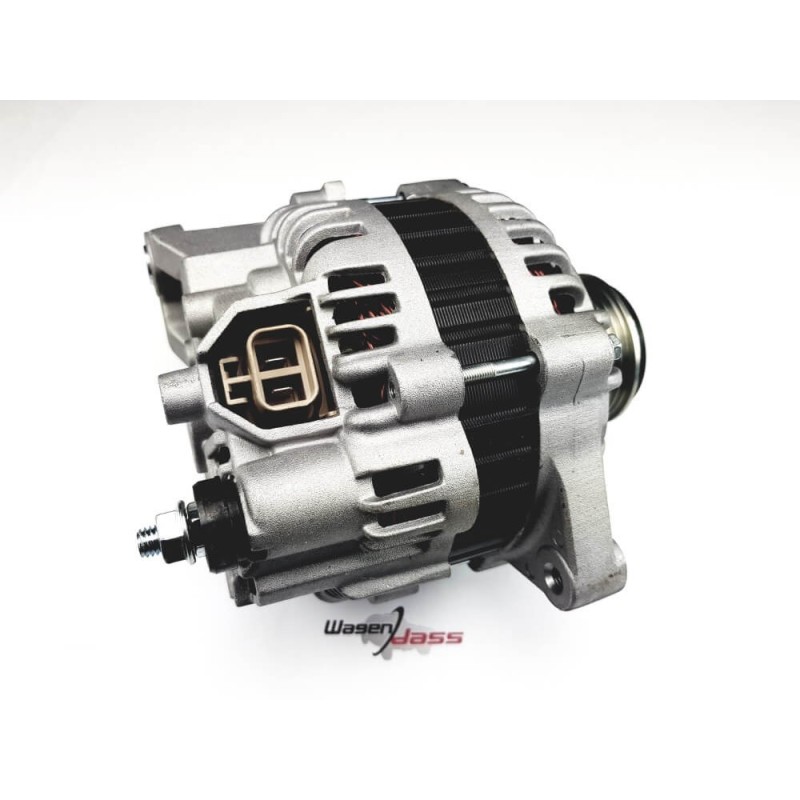

Alternator replacing HITACHI LR1130-702 / LR1130-702B / LR1130-702C
Alternator NEW for NISSAN, OPEL, RENAULT, RENAULT
V.I.,VAUXHALL
= HITACHI LR1130-702C / LR1130-702B / LR1130-702 / LR1130-702E
= NISSAN 23100-DB000 / 23100-DB00A / 23100-DB00B / 23100-DQA6
= OPEL 4419036 / 4419088 / 93179579 / 93196797 / 93196984 / 95514576
NO CORE EXCHANGE NEEDED
More info
Information:
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 81.00 |
| A | Pulley dist. | 38.50 |
| i | Grooves/pulley | 7 |
| j | Radius | 85.00 |
| j | Radius 2 | 84.00 |
| k | Position B + | M8 |

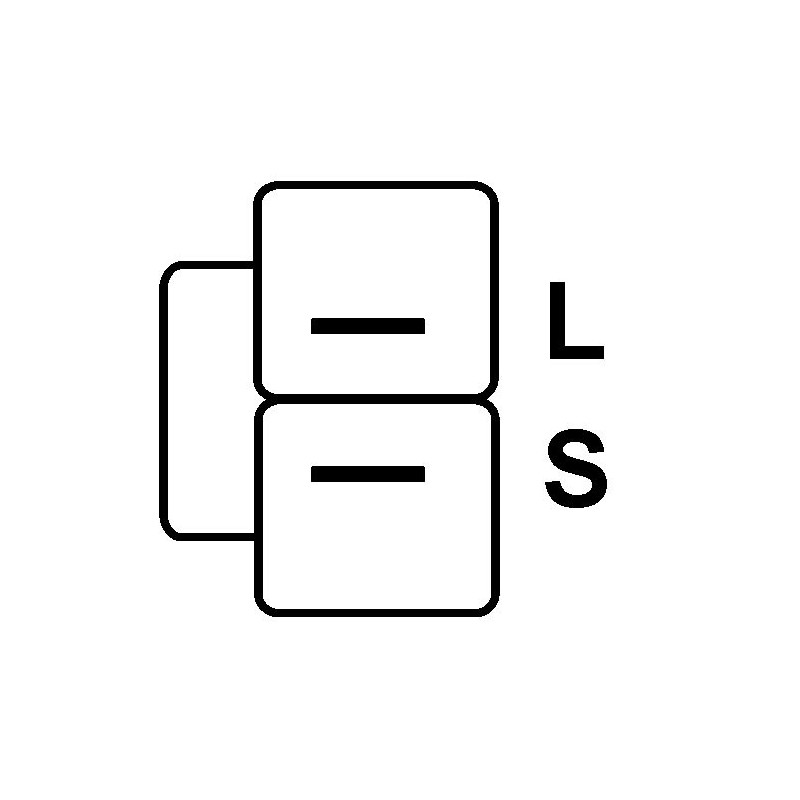

| o | Plug no. 1 | PL07 |
| R | Total length mm | 195.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 135 | |
generic brand
= Reference 284989 / 5010437730 / 575517135 / 7420885317 / 7701070077 / 9090634F / DRA0231 / LRA02873
| 113993 | Cargo |
| 12060860 | EuroTec |
| 12090385 | EuroTec |
| 23100DB000 | NISSAN |
| 23100DB00A | NISSAN |
| 23100DB00B | NISSAN |
| 23100DQA6 | NISSAN |
| 284989 | Elstock |
| 4406495 | OPEL |
| 4419036 | OPEL |
| 4419088 | OPEL |
| 5010437730 | RENAULT |
| 57205 | EAI |
| 575517135 | PSH |
| 7420885317 | RENAULT |
| 7701070077 | RENAULT |
| 9090634F | Friesen |
| 930231 | EDR |
| 93179579 | OPEL |
| 93196797 | OPEL |
| 93196984 | OPEL |
| 95514576 | OPEL |
| CA2082IR | HC |
| DRA0231 | DELCO REMY |
| L80940 | ATL |
| LR1130702 | HITACHI |
| LR1130702B | HITACHI |
| LR1130702C | HITACHI |
| LR1130702E | HITACHI |
| LRA02873 | LUCAS |
| OAN11531 | Optimum |
TWO YEARS WARRANTY
fits:
| Brand | Model | Tipo | Year |
| NISSAN | Interstar 3.0 dCi 140 | [ZD30] | 01.2003 |
| OPEL | Movano 3.0 CDTi | [ZD3-200] | 01.2003-01.2005 |
| OPEL | Movano 3.0 CDTi | [ZD3-202] | 01.2003-01.2005 |
| RENAULT | Master 3.0 dCi | [ZD3 20] | 01.2003-01.2006 |
| VAUXHALL | Movano 3.0 DTi | [ZD3-200] | 01.2004-01.2005 |
| VAUXHALL | Movano 3.0 DTi | [ZD3-202] | 01.2004-01.2005 |
