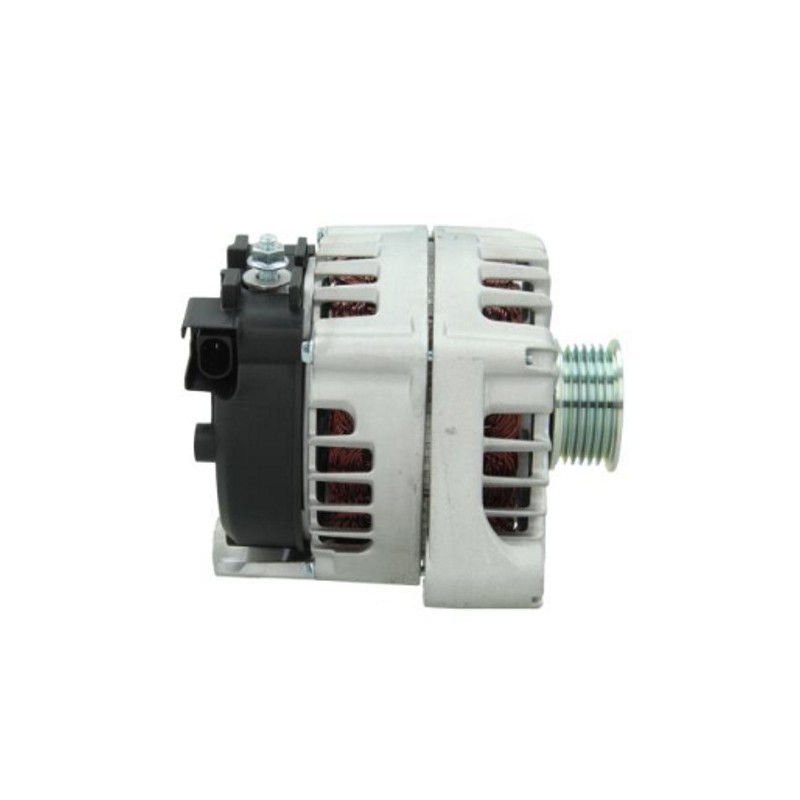

Alternator VALEO 2543461A / fg18s019 for BMW

Information:

Voltage 14

Amp 180

D = Bracket hole 10.50

G = Belt. adj. bracket hole 10.30

B = Width/holder arm 28.00

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 75.00

H = Pulley dia. 53.50

A = Pulley dist. 57.00

Grooves/pulley 6

J = Radius 93.00

J = Radius 92.50

Position B + M8

Rotation Cr

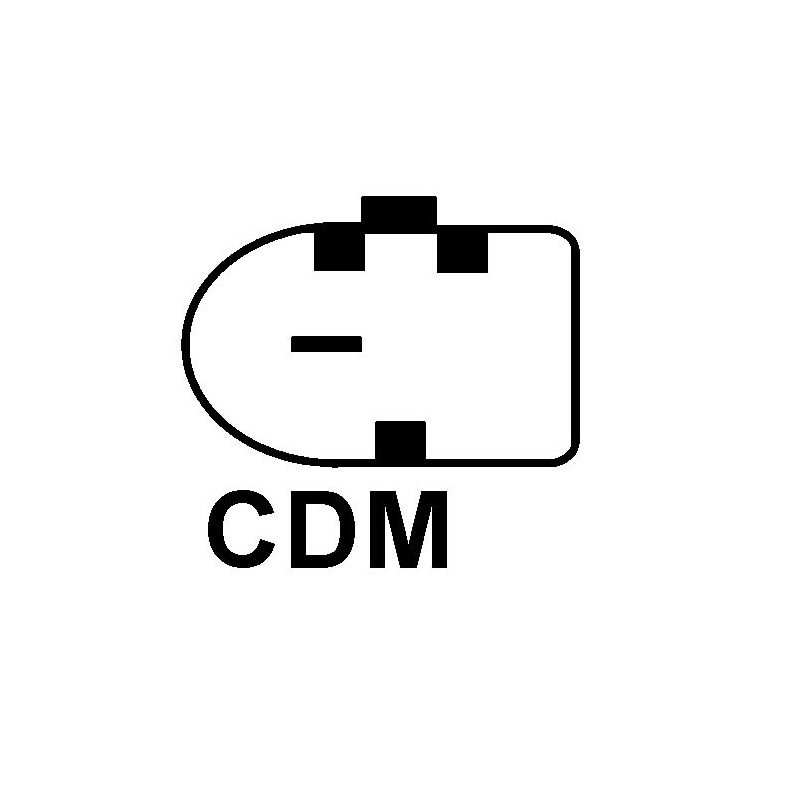

Plug no. 1 PL161

Fan If

Pulley Serpentine Pulley

R = Total length mm 185.00

= BMW 12317802261 / 12317802619

= DELCO REMY DRA0311

= HELLA 8EL738212671

= LUCAS LRA03100

= VALEO 2543461A / fg18s019 / 2543461B / 440183 / 439613

                                         NO CORE EXCHANGE NEEDED

                                                    TWO YEARS WARRANTY
